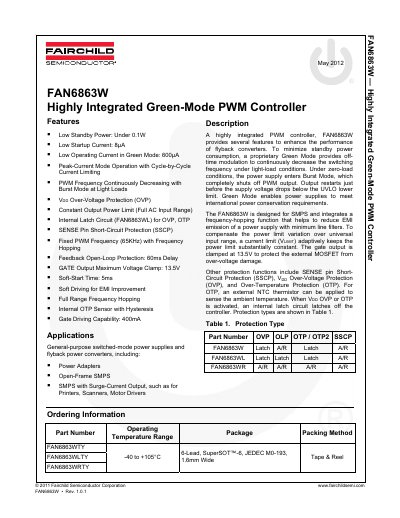

Fairchild FAN6863W Highly Integrated Green-Mode PWM Controller Datasheet
The FAN6863W is a highly integrated PWM controller designed to enhance the performance of flyback converters by minimizing standby power consumption. It utilizes a proprietary Green Mode that modulates off-time to continuously decrease switching frequency under light-load conditions, entering Burst Mode at zero load. The device integrates a frequency-hopping function to reduce EMI emissions and includes adaptive current limiting to maintain constant output power across universal input ranges.
Read onlineFairchild FAN6863 specifications
| Low Standby Power | Under 0.1W |
|---|---|
| Low Startup Current | 8A |
| Operating Supply Current in Green Mode | 600uA |
| PWM Frequency (Fixed) | 65KHz |
| Gate Output Maximum Voltage Clamp | 13.5V |
| Gate Driving Capability | 400mA |
| Operating Junction Temperature Range | -40 to +125 °C |
Source: Fairchild FAN6863W Highly Integrated Green-Mode PWM Controller Datasheet
All Fairchild FAN6863 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary function of the FAN6863W?
It is a highly integrated PWM controller designed to enhance the performance of flyback converters.
From: Fairchild FAN6863W Highly Integrated Green-Mode PWM Controller Datasheet
How does the device minimize standby power consumption?
It uses a proprietary Green Mode that modulates off-time to continuously decrease switching frequency under light-load conditions.
From: Fairchild FAN6863W Highly Integrated Green-Mode PWM Controller Datasheet
What are the applications for the FAN6863?
It is designed for general-purpose switched-mode power supplies and flyback power converters, including power adapters.
Does the FAN6863L include a latch circuit?
Yes, the FAN6863L includes an internal latch circuit for Over-Voltage Protection (OVP) and Over-Temperature Protection (OTP).
