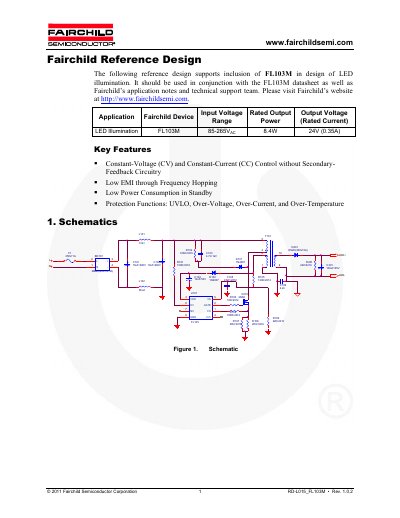

Fairchild RD-L015_FL103M LED Illumination Reference Design Handbook
The document presents a Fairchild reference design supporting the inclusion of the FL103M in LED illumination designs. It operates with an input voltage range of 85-265Vac and delivers a rated output of 8.4W at 24V (0.35A). Key features include Constant-Voltage and Constant-Current control without secondary-feedback circuitry, low EMI through frequency hopping, and various protection functions such as UVLO, Over-Voltage, Over-Current, and Over-Temperature.
Read onlineFairchild FL103M specifications
| Input Voltage Range | 85-265Vac |
|---|---|
| Rated Output Power | 8.4W |
| Output Voltage | 24V |
| Output Current | 0.35A |
| Core Type | EE1614S (PC-40) |
| Primary Turns | 76 |
| Inductance | 1.13mH + 7% |
Source: Fairchild RD-L015_FL103M LED Illumination Reference Design Handbook
All Fairchild FL103M documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the transformer core type?
The transformer uses an EE1614S core made of PC-40 material.
From: Fairchild RD-L015_FL103M LED Illumination Reference Design Handbook
Where can I find the datasheet for the FL103M?
The document directs users to visit Fairchild's website at http://www.fairchildsemi.com/referencedesign/.
From: Fairchild RD-L015_FL103M LED Illumination Reference Design Handbook
What is the recommended efficiency range for low-voltage output applications?
The overall power conversion efficiency should be set to 0.7 ~ 0.75.
What is the recommended efficiency range for high-voltage output applications?
The overall power conversion efficiency should be set to 0.8 ~ 0.85.
