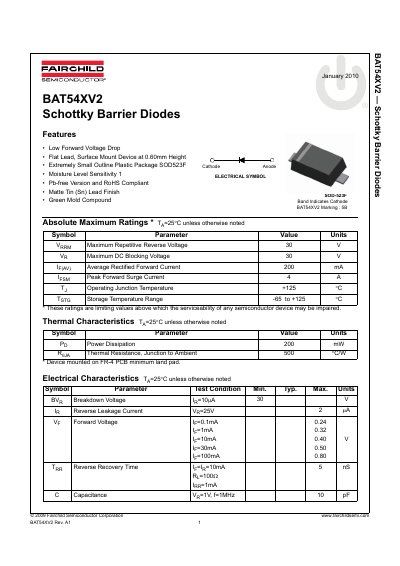

Fairchild Semiconductor BAT54XV2 Schottky Barrier Diode Datasheet
This document is a datasheet for the Fairchild Semiconductor BAT54XV2 Schottky Barrier Diode. It features a low forward voltage drop and is available in a flat lead, surface mount SOD-523F package. The device is Pb-free, RoHS compliant, and has a moisture level sensitivity of 1.
Read onlineFairchild BAT54 specifications
| Maximum Repetitive Reverse Voltage | 30 V |
|---|---|
| Maximum DC Blocking Voltage | 30 V |
| Average Rectified Forward Current | 200 mA |
| Peak Forward Surge Current | 4 A |
| Operating Junction Temperature | +125 °C |
| Storage Temperature Range | -65 to +125 °C |
| Power Dissipation | 200 mW |
| Thermal Resistance, Junction to Ambient | 500 °C/W |
| Breakdown Voltage | 30 V |
| Forward Voltage at Ir=0.1mA | 0.24 V |
| Forward Voltage at Ir=1mA | 0.32 V |
| Forward Voltage at Ir=10mA | 0.40 V |
| Reverse Recovery Time | 5 ns |
| Capacitance | 10 pF |
Source: Fairchild Semiconductor BAT54XV2 Schottky Barrier Diode Datasheet
