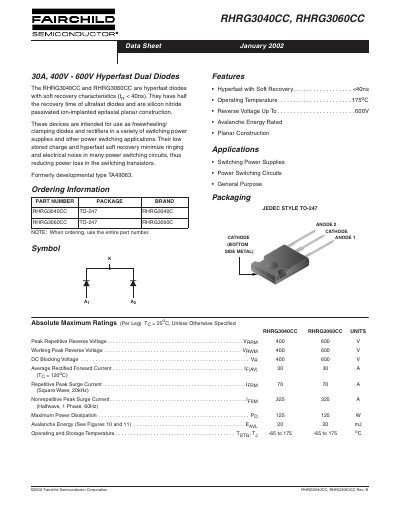

Fairchild RHRG3040CC/RHRG3060CC Hyperfast Dual Diodes Datasheet
The document describes the RHRG3040CC and RHRG3060CC hyperfast dual diodes, which feature soft recovery characteristics with a recovery time of less than 40ns. These devices utilize silicon nitride passivated ion-implanted epitaxial planar construction and are intended for use as freewheeling/clamping diodes and rectifiers in switching power supplies and other power switching applications.
Read onlineFairchild RHRG3040 specifications
| Operating Temperature | -65 to 175 °C |
|---|---|
| Package | TO-247 |
| Forward Voltage (Typical) | 24 V |
| Reverse Recovery Time (Typical) | < 40ns |
Source: Fairchild RHRG3040CC/RHRG3060CC Hyperfast Dual Diodes Datasheet
All Fairchild RHRG3040 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the intended applications for these diodes?
They are intended for use as freewheeling/clamping diodes and rectifiers in switching power supplies and other power switching applications.
From: Fairchild RHRG3040CC/RHRG3060CC Hyperfast Dual Diodes Datasheet
What is the recovery time of these diodes?
They have soft recovery characteristics with a recovery time of less than 40ns.
From: Fairchild RHRG3040CC/RHRG3060CC Hyperfast Dual Diodes Datasheet
What are the primary applications for these diodes?
They are intended for use as freewheeling/clamping diodes and rectifiers in switching power supplies and other power switching applications.
From: Fairchild Semiconductor RHRG3040/RHRG3060 Hyperfast Diodes Data Sheet
What is the package type?
The RHRG3040 and RHRG3060 are packaged in JEDEC STYLE TO-247.
From: Fairchild Semiconductor RHRG3040/RHRG3060 Hyperfast Diodes Data Sheet
