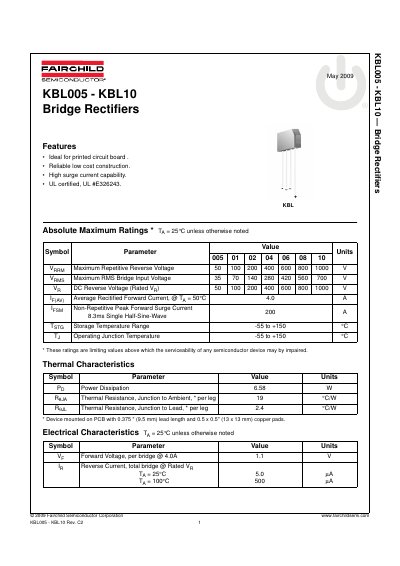

FAIRCHILD KBL01 handbook
Datasheet 3 pages · 171 KB · EN
This document is a datasheet for Fairchild Semiconductor's KBL series of bridge rectifiers, specifically covering models KBL005 through KBL10. The device is designed for printed circuit board applications and features a reliable low-cost construction with high surge current capability. It is UL certified under number 326243.
Read onlineFairchild KBL005 - KBL10 specifications
| Maximum Repetitive Reverse Voltage | 50 to 1000 V |
|---|---|
| Average Rectified Forward Current | 4.0 A |
| Non-Repetitive Peak Forward Surge Current | 200 A |
| Storage Temperature Range | -55 to +150 °C |
| Operating Junction Temperature | -55 to +150 °C |
| Power Dissipation | 6.58 W |
| Forward Voltage | 1.1 V |
Source: FAIRCHILD KBL01 handbook
All Fairchild KBL005 - KBL10 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the non‑repetitive peak forward surge current rating?
The bridge rectifiers can handle a non‑repetitive peak forward surge current of 200 A.
