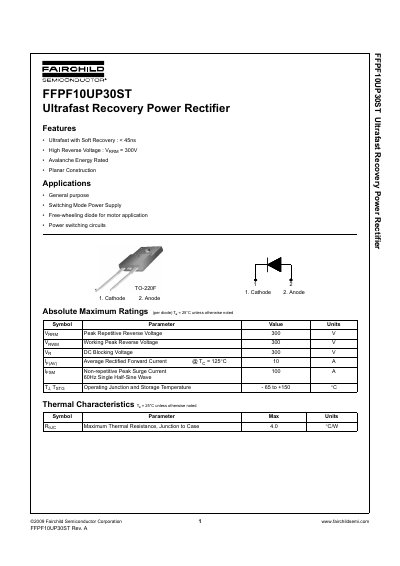

Fairchild Semiconductor FFPF10UP30ST Ultrafast Recovery Power Rectifier Datasheet
This document is a datasheet for the Fairchild Semiconductor FFPF10UP30ST, an Ultrafast Recovery Power Rectifier. The device features a planar construction with a reverse voltage rating of 300V and is designed for applications such as switching mode power supplies and free-wheeling diodes in motor circuits. It is housed in a TO-220F package.
Read onlineFairchild FFPF10UP30S specifications
| Peak Repetitive Reverse Voltage | 300 V |
|---|---|
| Average Rectified Forward Current | 10 A |
| Non-repetitive Peak Surge Current | 100 A |
| Operating Junction and Storage Temperature | -65 to +150 °C |
| Maximum Thermal Resistance, Junction to Case | 4.0 °C |
| Reverse Recovery Time (Typical) | < 45ns |
Source: Fairchild Semiconductor FFPF10UP30ST Ultrafast Recovery Power Rectifier Datasheet
All Fairchild FFPF10UP30S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for this rectifier?
It is used for general purpose, switching mode power supply, free-wheeling diode for motor application, and power switching circuits.
From: Fairchild Semiconductor FFPF10UP30ST Ultrafast Recovery Power Rectifier Datasheet
What is the package type?
The device is available in a TO-220F package.
From: Fairchild Semiconductor FFPF10UP30ST Ultrafast Recovery Power Rectifier Datasheet
What is the maximum average rectified forward current for this diode at a junction temperature of 125°C?
The device supports an average rectified forward current of 10 A when the operating junction temperature is 125°C.
From: Fairchild FFPF10UP30S Ultrafast Recovery Power Rectifier Datasheet
What is the maximum non-repetitive peak surge current rating for a single half-sine wave at 60Hz?
The diode can handle a non-repetitive peak surge current of 100 A under a 60Hz single half-sine wave condition.
From: Fairchild FFPF10UP30S Ultrafast Recovery Power Rectifier Datasheet
