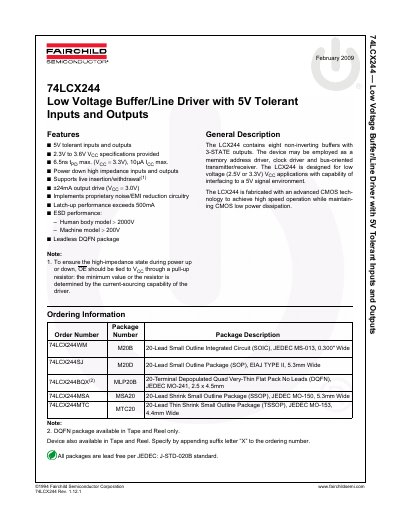

FAIRCHILD 74LC244 handbook
Datasheet 14 pages · 717 KB · EN
The 74LCX244 is an eight-channel non-inverting buffer featuring 3-STATE outputs designed for low-voltage applications (2.5V or 3.3V) that interface to a 5V signal environment. It supports live insertion and withdrawal, implements proprietary noise/EMI reduction circuitry, and offers high-speed operation with maximum propagation delays of 6.5ns at Vcc = 3.3V.
Read onlineFairchild 74LCX244 specifications
| Output Drive Current (3.0V) | +24mA / -24mA |
|---|---|
| Max Propagation Delay (3.3V) | 6.5ns |
| ESD Performance (Human Body Model) | >2000V |
Source: FAIRCHILD 74LC244 handbook
All Fairchild 74LCX244 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the inputs tolerate 5V signals?
Yes, the device features 5V tolerant inputs and outputs.
What are the recommended operating supply voltage limits?
The recommended operating supply voltage ranges from a minimum of 2.0V to a maximum of 3.6V.
How many buffers does the device contain?
The device contains eight non-inverting buffers.
From: Fairchild 74LCX244 Low Voltage Buffer/Line Driver Datasheet
