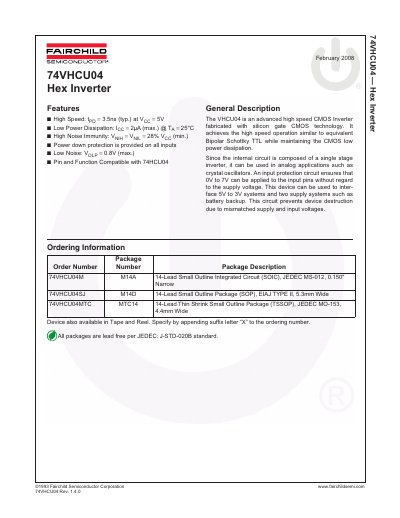

Fairchild 74VHCU04 Hex Inverter Datasheet
This document is a technical datasheet for the Fairchild Semiconductor 74VHCU04 Hex Inverter. It describes an advanced high-speed CMOS inverter fabricated with silicon gate technology that achieves operation speeds similar to Bipolar Schottky TTL while maintaining low power dissipation.
The datasheet provides comprehensive specifications including absolute maximum ratings, recommended operating conditions, and DC/AC electrical characteristics for supply voltages ranging from 2.0V to 5.5V. It also details pin descriptions, logic symbols, truth tables, and physical dimensions for three available packages: SOIC, SOP, and TSSOP.
Fairchild 74VHCU04 specifications
| Power Dissipation (Max) | 2µA @ Ta = 25°C |
|---|---|
| Supply Voltage Range | 2.0V to +5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Input Protection Range | OV to 7V |
All Fairchild 74VHCU04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the device compatible with standard TTL logic?
Yes, it is pin and function compatible with the 74HCU04.
What is the maximum recommended operating temperature for this device?
The device is rated for operation between -40°C and +85°C.
What is the typical propagation delay of the 74VHCU04?
The typical propagation delay is 3.5 ns.
Which package types are available for the 74VHCU04?
It is offered in SOIC, SOP, TSSOP, and PDIP packages.
