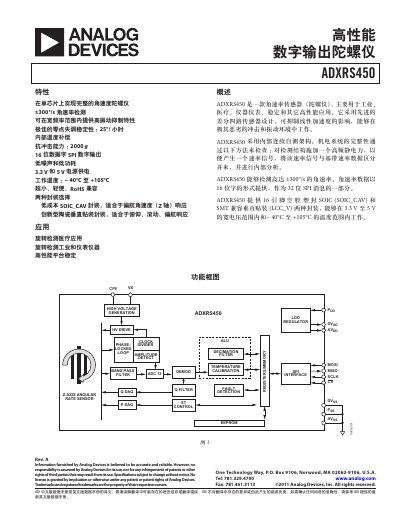

This datasheet details the Analog Devices ADXRS450 high-performance digital output gyro sensor, covering specifications, pinouts, and application information.
The document describes the ADXRS450, a high-performance angular rate sensor (gyro) designed for industrial, medical, instrumentation, stabilization, and other high-performance applications. It features a differential four-channel sensor design that suppresses the effects of linear acceleration and operates in harsh shock and vibration environments.
The device provides 16-bit digital output via SPI and is available in two package options: SOIC_CA V and LCC_V. Key specifications include a measurement range of ±300 °/s, internal continuous self-test architecture, temperature compensation, and an operating voltage range of 3.3 V to 5 V.
The sensor can detect angular rates up to ±300°/s.
The device can withstand an acceleration of 2000 g.
