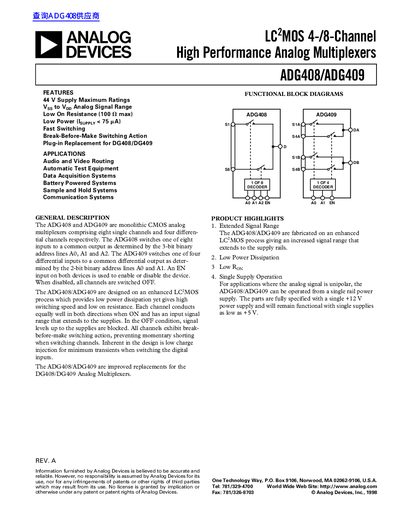

ANALOG DEVICES LC 2 MOS 4-/8-Channel High Performance Analog Multiplexers ADG408/ADG409 handbook
The ADG408 and ADG409 are monolithic CMOS analog multiplexers designed on an enhanced LC 2MOS process. The ADG408 switches one of eight inputs to a common output, while the ADG409 switches one of four differential inputs to a common differential output. Both devices feature break-before-make switching action and low charge injection for minimum transients.
Read onlineAnalog Devices ADG408 specifications
| Supply Voltage Maximum | 44 V |
|---|---|
| On Resistance (Typical) | 40 Ω |
| Input Signal Range | VSS to VDD |
| Operating Temperature (Industrial) | -40 °C to +85 °C |
| Operating Temperature (Extended) | -55 °C to +125 °C |
| Power Dissipation (Plastic Package) | 470 mW |
| Channel-to-Channel Crosstalk | 85 dB |
Source: ANALOG DEVICES LC 2 MOS 4-/8-Channel High Performance Analog Multiplexers ADG408/ADG409 handbook
All Analog Devices ADG408 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the ADG408/ADG409?
The maximum supply voltage is 44 V.
From: ANALOG DEVICES LC 2 MOS 4-/8-Channel High Performance Analog Multiplexers ADG408/ADG409 handbook
What are the operating temperature ranges for the B and T versions?
The B version operates from -40 °C to +85 °C, and the T version operates from -55 °C to +125 °C.
From: ANALOG DEVICES LC 2 MOS 4-/8-Channel High Performance Analog Multiplexers ADG408/ADG409 handbook
What is the maximum supply voltage for the ADG408/ADG409?
The devices are rated for a maximum supply voltage of 44 V.
What is the typical on‑resistance of the multiplexers?
Typical on‑resistance (Ron) is 40 Ω, with a maximum of 100 Ω.
