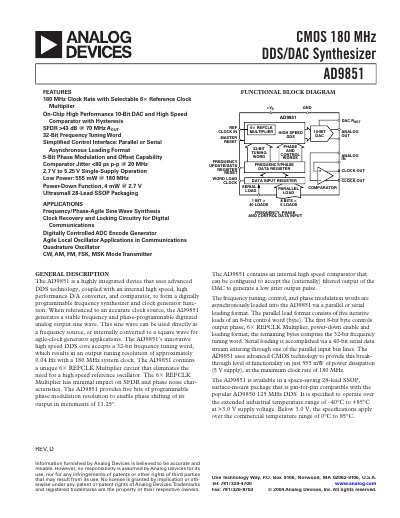

Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
The AD9851 is a highly integrated device that combines advanced Direct Digital Synthesis (DDS) technology with an internal high-speed, high-performance Digital-to-Analog Converter (DAC) and comparator. It functions as a digitally programmable frequency synthesizer and clock generator, capable of generating stable, phase-programmable digitized analog output sine waves when referenced to an accurate clock source. The device features a 32-bit frequency tuning word for high resolution and includes a unique 6x reference clock multiplier to eliminate the need for a high-speed external reference oscillator.
Read onlineAnalog Devices AD9851 specifications
| DAC Resolution | 10-Bit |
|---|---|
| Power Dissipation (Max) | 555 mW |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Package Type | 28-Lead SSOP |
| Supply Voltage Range | 2.7 V to 5.25 V |
Source: Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
All Analog Devices AD9851 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output tuning resolution of the AD9851?
The output tuning resolution is approximately 0.04 Hz with a 180 MHz system clock.
From: Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
Is the AD9851 pin-compatible with the AD9850?
Yes, it is available in a package that is pin-for-pin compatible with the popular AD9850 125 MHz DDS.
From: Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
What package does the AD9851 use?
The AD9851 is offered in a 28‑lead SSOP surface‑mount package.
From: Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
What is the DAC resolution of the AD9851?
The internal DAC is a 10‑bit converter.
From: Analog Devices AD9851 CMOS 180 MHz DDS/DAC Synthesizer Datasheet
What package does the AD9851 use?
The AD9851 is available in a 28‑lead SSOP surface‑mount package.
