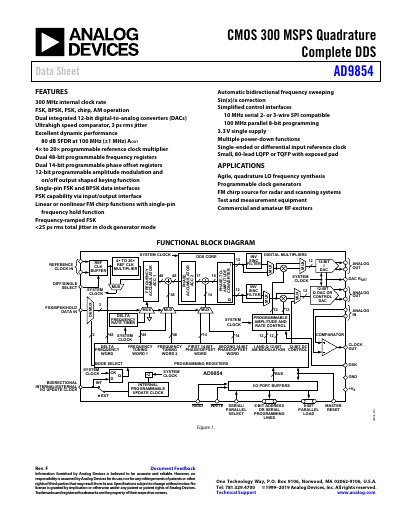

Analog Devices AD9854 Digital Synthesizer Data Sheet
The AD9854 is a highly integrated device that uses advanced Direct Digital Synthesis (DDS) technology coupled with two internal high-speed, high-performance quadrature DACs. It generates stable, frequency-phase, and amplitude-programmable sine and cosine outputs suitable for agile local oscillators in communications, radar, and test equipment applications.
The device provides 48-bit frequency resolution and supports simultaneous quadrature output signals up to 150 MHz. Key features include an internal programmable reference clock multiplier (4x to 20x), support for FSK, BPSK, PSK, and chirp operations, and a single-pin interface for conventional FSK and BPSK data.
Analog Devices AD9854 specifications
| Internal System Clock Frequency Range (Multiplier Enabled) | 20 to 300 MHz |
|---|---|
| External Reference Clock Frequency Range (Multiplier Disabled) | DC to 200 MHz |
| DAC Resolution | 12 Bits |
| Full-Scale Output Current (I and Q) | 5 to 20 mA |
| Wideband SFDR (1 MHz to 20 MHz) | 58 dBc |
| Narrow-Band SFDR (10 MHz, ±1 MHz) | 83 dBc |
| Supply Voltage | 3.3 V single supply |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
Source: Analog Devices AD9854 Digital Synthesizer Data Sheet
All Analog Devices AD9854 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum internal system clock frequency?
The internal system clock frequency can reach up to 300 MHz when the REFCLK multiplier is enabled.
Does the AD9854 support differential input reference clocks?
Yes, direct 300 MHz clocking is accommodated with either single-ended or differential inputs.
What is the supply voltage required for the AD9854?
The device operates from a 3.3 V supply with a tolerance of ±5 %.
From: Analog Devices AD9854 CMOS 300 MSPS Quadrature Complete DDS Datasheet
What temperature range can the AD9854 operate in?
It is specified for industrial temperature operation from –40 °C to +85 °C.
From: Analog Devices AD9854 CMOS 300 MSPS Quadrature Complete DDS Datasheet
What is the maximum clock frequency of the AD9854?
The AD9854 can operate up to 300 MHz clock frequency.
From: Analog Devices AD9854 300 MHz Quadrature Complete‑DDS Manual
What supply voltage does the AD9854 require?
The device operates from a single 3.3 V supply.
From: Analog Devices AD9854 300 MHz Quadrature Complete‑DDS Manual
