Start here

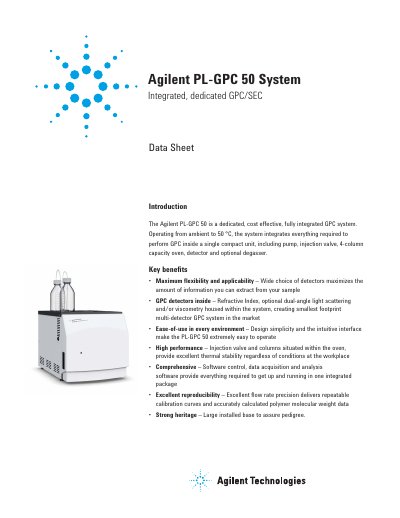

Agilent PL-GPC 50 Integrated GPC System Data Sheet
The Agilent PL-GPC 50 is a dedicated, fully integrated Gel Permeation Chromatography (GPC) system designed for cost-effective analysis. It combines a pump, injection valve, oven, and detectors into a single compact unit, operating from ambient to 50 °C. The system features a 6 µL refractive index detector cell and a 10 µL light scattering detector cell to minimize extra-column dispersion.
Read onlineAgilent PL-GPC 50 specifications
| Flow range | 0.01 - 9.99 mL/min |
|---|---|
| Flow rate precision | <0.09 % |
| Temperature range | Ambient to 50 °C |
| RI Detector cell volume | 6 ul |
| Laser wavelength | 658 nm |
| Operating System | Windows 7 |
| Power requirements | 115/230 V AC 50/60 Hz, 5A |
All Agilent PL-GPC 50 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
- Agilent PL-GPC 50 Analysis of Polybutadienes by GPC with Triple Detection 2 p
- Agilent PL-GPC 50 Analysis of Poly(isobornyl methacrylate) Application Note 2 p
- Agilent Analysis of Linear and Branched Polyethylene Glycols via GPC Viscometry Application Note 2 p
- Agilent PL-GPC 50 Poly(styrene/butadiene) Copolymer Analysis Application Note 2 p
- Analysis of Melamine Resins by Conventional GPC using PolarGel-L Columns Application Note 2 p
- Agilent PL-GPC 50 Plus Starch Analysis Application Note 2 p
- Agilent GPC/SEC Analysis of Elastomers Application Compendium 107 p
- Agilent PL-GPC 50 Plus Analysis of Polyols by GPC with Viscometry Application Note 3 p
Questions answered in these manuals
What is the flow rate precision of the PL-GPC 50?
The system delivers flow reproducibility better than 0.1%.
What is the capacity of the autosampler?
The autosampler has a 156 vial capacity.
What is triple detection SEC?
Triple detection SEC employs a concentration detector, a viscometer, and a light scattering detector to assess polymer properties without column calibrations.
From: Agilent PL-GPC 50 Analysis of Polybutadienes by GPC with Triple Detection
Why use triple detection for polybutadienes?
It is important when analyzing complex materials for which no structurally similar standards are available.
From: Agilent PL-GPC 50 Analysis of Polybutadienes by GPC with Triple Detection
What system was used for the analysis?
The analysis was performed using the Agilent PL-GPC 50 Integrated GPC/SEC System.
From: Agilent PL-GPC 50 Analysis of Poly(isobornyl methacrylate) Application Note
What columns were used in the experiment?
Two Agilent PolyPore columns with part number PL1113-6500 were used.
From: Agilent PL-GPC 50 Analysis of Poly(isobornyl methacrylate) Application Note
