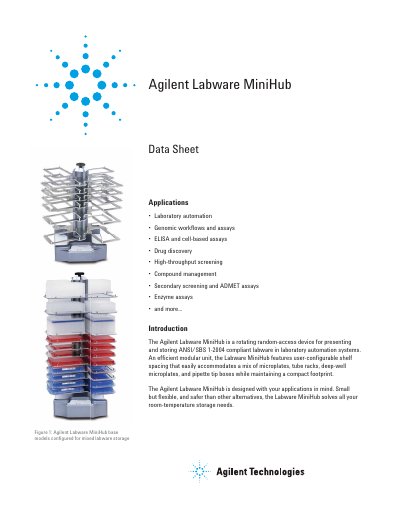

The Agilent Labware MiniHub is a rotating random-access device for presenting and storing ANSI/SBS 1-2004 compliant labware in laboratory automation systems. An efficient modular unit, the Labware MiniHub features user-configurable shelf spacing that easily accommodates a mix of microplates, tube racks, deep-well microplates, and pipette tip boxes while maintaining a compact footprint. The Agilent Labware MiniHub is designed with your applications in mind. Small but flexible, and safer than other alternatives, the Labware MiniHub solves all your room-temperature storage needs.
The Agilent Labware MiniHub is a rotating random-access device designed for presenting and storing SBS-format labware in laboratory automation systems. It features user-configurable shelf spacing using stackable spacers, allowing the same carousel to accommodate a mix of microplates, tube racks, and pipette tip boxes. The device supports both portrait and landscape access for most robots and includes cutouts suitable for filter plates to prevent contamination.
The MiniHub utilizes direct-drive technology with a brushless motor and optical encoder for high reliability and positional accuracy. Safety features include collision/resistance sensing, automatic emergency stops, and rounded edges to prevent injuries. It is controlled via VWorks Automation Control software or third-party software through an ActiveX interface.
| Payload per labware | 200 g |
|---|---|
| Maximum payload | 12 800 g |
| Repeatability | + 0.02° Phi (+ 0.5 mm) |
| Weight G5471A | 10 kg |
| Weight G5472A | 13 kg |
| Weight G5473A | 3.6 kg |
| Operating temperature | 4-40°C |
| Operating humidity | 20-90% RH non-condensing |
| Computer connection | RS-232 or DB serial port |
The G5471A System model includes 16 shelves to accommodate a maximum of 64 microplates.
The G5473A power supply is able to deliver up to 175 W of continuous power to two devices.
