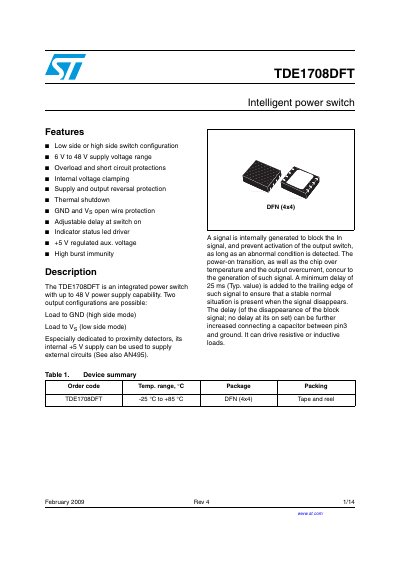

STMicroelectronics TDE1708DFT Intelligent Power Switch Datasheet
The TDE1708DFT is an integrated power switch designed for supply voltages ranging from 6 V to 48 V. It supports both low side and high side switch configurations and includes robust protection features such as overload, short circuit, and thermal shutdown. The device also offers internal voltage clamping and protection against supply and output reversal.
Read onlineSTMicroelectronics TDE1708DFT specifications
| Supply voltage range | 6 V to 48 V |
|---|---|
| Thermal resistance junction-ambient | 32 °C/W |
| Thermal shutdown temperature | 180 °C |
Source: STMicroelectronics TDE1708DFT Intelligent Power Switch Datasheet
All STMicroelectronics TDE1708DFT documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the supply voltage range for the TDE1708DFT?
The device supports a supply voltage range from 6 V to 48 V.
From: STMicroelectronics TDE1708DFT Intelligent Power Switch Datasheet
Does the TDE1708DFT support high side or low side switching?
Yes, two output configurations are possible: Load to GND (high side mode) and Load to V S (low side mode).
From: STMicroelectronics TDE1708DFT Intelligent Power Switch Datasheet
What is the maximum current the TDE1708DFT can deliver?
The TDE1708DFT can deliver up to 250 mA.
From: STMicroelectronics AN2813 TDE1708DFT IO-Link Application Note
Which IO-Link communication modes are supported for the TDE1708DFT?
The device supports COM1 (4.8 kBaud) for p-switching and up to COM2 (38.4 kBaud) for push-pull configurations.
From: STMicroelectronics AN2813 TDE1708DFT IO-Link Application Note
