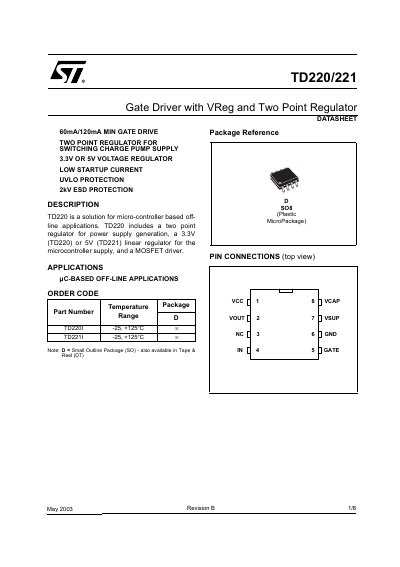

STMicroelectronics TD220/221 Gate Driver Datasheet
The TD220 and TD221 are integrated solutions designed for micro-controller based off-line applications. These devices combine a two-point regulator for power supply generation with a linear voltage regulator (3.3V for the TD220 or 5V for the TD221) to power the microcontroller, alongside a dedicated MOSFET driver.
Read onlineSTMicroelectronics TD220 specifications
| Output Voltage (TD220) | 3.3V |
|---|---|
| Continuous Current in VSUP pin | -200 to 200 mA |
| Power Dissipation | 500 mW |
| ESD Protection (HBM) | 2 kV |
All STMicroelectronics TD220 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the output voltage of the TD221?
The TD221 provides a 5V linear regulator for the microcontroller supply.
What is the operating temperature range?
The junction temperature operates from -25°C to +125°C.
What voltage range does the UVLO block use to control circuit ignition and blocking?
The circuit turns on when the voltage reaches 14.1 V and turns off when it drops below 8.2 V.
From: STMicroelectronics TD220/221 Gate Driver Application Note AN1707
What is the accuracy of the Vreg output voltage for the TD220 model?
The Vreg block provides a precise output voltage at 3.3 V with an accuracy of +3%.
