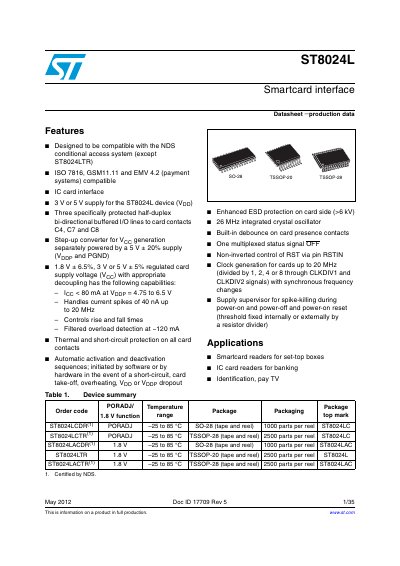

STMicroelectronics ST8024L Smartcard Interface Datasheet
The ST8024L is a complete low-cost analog interface designed for asynchronous Class A, B, and C smartcards. It interfaces between the card and a microcontroller, performing all supply protection and control functions with few external components. The device is compatible with the NDS conditional access system (except the ST8024LTR variant) and supports ISO 7816, GSM11.11, and EMV 4.2 payment systems.
Read onlineSTMicroelectronics ST8024 specifications
| Operating Temperature Range | -25 to 85 °C |
|---|---|
| Maximum Operating Junction Temperature | 150 °C |
| ESD Protection (Card Contacts) | >6 kV |
| Integrated Crystal Oscillator | 26 MHz |
| Maximum Clock Frequency | 20 MHz |
| Card Supply Current | < 80 mA |
Source: STMicroelectronics ST8024L Smartcard Interface Datasheet
All STMicroelectronics ST8024 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
- ST AN2269 handbook 25 p
Questions answered in these manuals
What is the maximum current the ST8024L can supply to a card?
The device provides less than 80 mA of current when the step-up converter voltage is between 4.75 V and 6.5 V.
From: STMicroelectronics ST8024L Smartcard Interface Datasheet
What is the maximum operating junction temperature for this device?
The absolute maximum operating junction temperature is 150 °C.
From: STMicroelectronics ST8024L Smartcard Interface Datasheet
What smartcard standards is the ST8024 compatible with?
The ST8024 is compatible with ISO 7816, GSM11.11, and EMV payment systems.
From: STMicroelectronics ST8024 Smartcard Interface Datasheet
Is the ST8024 a replacement for the ST8004?
Yes, the ST8024 is a direct replacement of the ST8004.
From: STMicroelectronics ST8024 Smartcard Interface Datasheet
What is the function of the ST8024?
It is a smart card interface designed to minimize microprocessor hardware and software complexity in applications requiring smart cards.
From: ST AN2269 handbook
What are the applications for the ST8024?
The device is suitable for Set Top Box, Electronic Payment, Pay TV, and Identification cards.
From: ST AN2269 handbook
