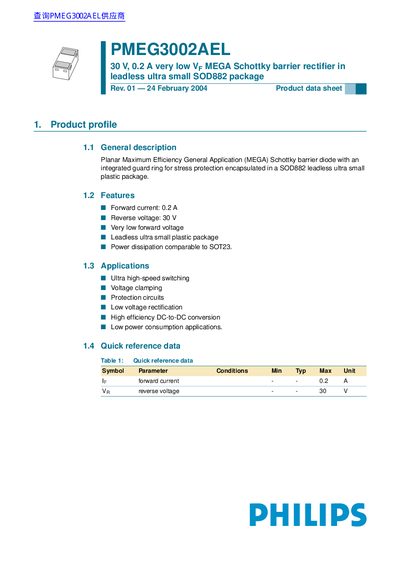

PHILIPS PMEG3002AEL 30 V 0.2 A very low VF MEGA Schottky barrier recti er in leadless ultra small SOD882 package handbook
This document is a product datasheet for the Philips PMEG3002AEL, a Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode. It features an integrated guard ring for stress protection and is encapsulated in a leadless ultra-small SOD882 plastic package.
The datasheet provides technical specifications including forward current of 0.2 A and reverse voltage of 30 V, along with pinning information, ordering details, marking codes, limiting values, thermal characteristics, and electrical characteristics graphs.
Philips SOD882 specifications
| Forward current | 0.2 A |
|---|---|
| Reverse voltage | 30 V |
| Package type | SOD882 leadless ultra small plastic package |
All Philips SOD882 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- PHILIPS PMEG3002AEL 30 V 0.2 A very low VF MEGA Schottky barrier recti er in leadless ultra small SOD882 package handbook 8 p
- PHILIPS PMEG2005AEL 0.5 A ultra low VF MEGA Schottky barrier recti er in leadless ultra small SOD882 package handbook 8 p
- PHILIPS PMEG2005EL 20 V 0.5 A very low VF MEGA Schottky barrier recti er in leadless ultra small SOD882 package handbook 8 p
