The document describes a Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection encapsulated in a SOD882 leadless ultra small plastic package. Its features include: forward current of 0.5 A, reverse voltage of 20 V, ultra low forward voltage, leadless ultra small plastic package, and power dissipation comparable to SOT23. It is suitable for ultra high-speed switching, voltage clamping, protection circuits, low voltage rectification, high efficiency DC-to-DC conversion, and low power consumption applications.

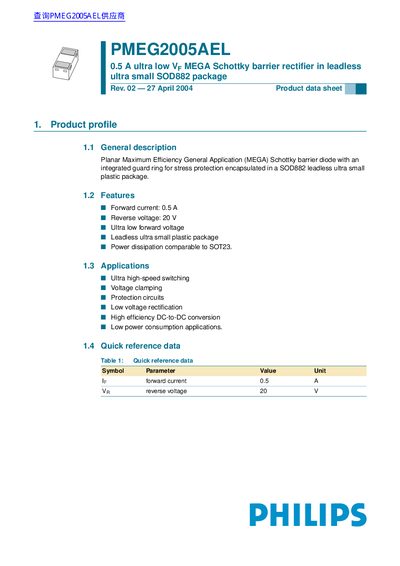

The document describes the Philips PMEG2005AEL, a Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode. It features an integrated guard ring for stress protection and is encapsulated in a leadless ultra small plastic SOD882 package. Key specifications include a forward current of 0.5 A and a reverse voltage of 20 V.
The datasheet provides comprehensive technical data, including pinning information, ordering details, marking codes, and absolute maximum ratings. It also lists thermal characteristics, electrical characteristics such as forward voltage and reverse current, and includes a package outline diagram.
| Forward current | 0.5 A |
|---|---|
| Reverse voltage | 20 V |
| Package type | SOD882 |
The device is encapsulated in a leadless ultra small plastic SOD882 package.
The maximum continuous forward current rating is 0.5 A.
The maximum continuous reverse voltage rating is 20 V.
The maximum junction temperature is 150 °C.
