PMEG2005EL is a Schottky diode produced by Philips, with a rated forward current of 0.5A, a reverse voltage of 20V, and a SOD882 package. It has a very low forward voltage drop and power consumption.

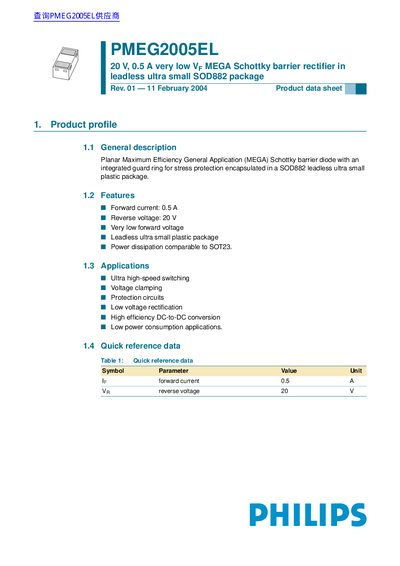

This datasheet describes the PMEG2005EL, a Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection. The device is encapsulated in a leadless ultra small plastic SOD882 package and features very low forward voltage drop suitable for high-efficiency applications.
Key specifications include a continuous forward current of 0.5 A, a reverse voltage rating of 20 V, and a maximum junction temperature of 150 °C. The document provides pinning information, ordering details, marking codes, limiting values, thermal characteristics, electrical characteristics curves, and package outline dimensions.
| Forward current (I_F) | 0.5 A |
|---|---|
| Reverse voltage (V_R) | 20 V |
| Package type | SOD882 leadless ultra small plastic package |
The device comes in a leadless ultra small plastic SOD882 package.
The maximum continuous forward current is 0.5 A.
