Key facts
- Brand
- Philips
- Model
- BHL 125 L200
- Industry
- Electronics
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-19
Start here

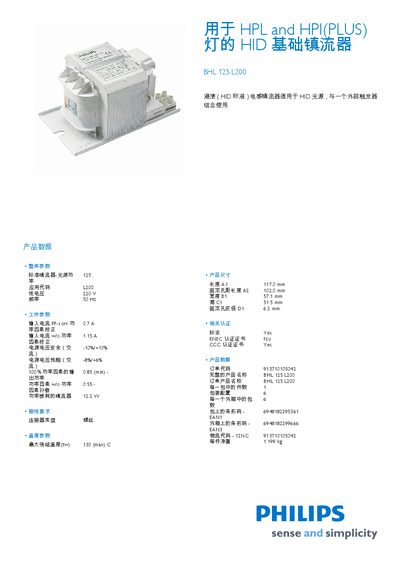

Philips BHL 125 L200 HID Ballast Manual
User Manual 2 pages · 328 KB · ZH
This manual for the Philips BHL 125 L200 HID ballast lists the overall and operating parameters, including voltage, frequency, power consumption and power factor. It also details wiring requirements, temperature limits and safety information.
Additional sections cover the physical dimensions, mounting hole spacing, packaging details and bar‑code information. The document includes the product’s weight and regulatory markings. This manual is written in Chinese.
Philips BHL 125 L200 specifications
| Voltage | 220 V 50 Hz |
|---|---|
| Power Factor (min) | 0.85 |
| Maximum Operating Temperature | 130 °C (max) |
| Length | 117.0 mm |
| Width | 102.0 mm |
| Weight | 1.330 kg |
All Philips BHL 125 L200 documents by type
Product Leaflet 1
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the model number of the lamp?
The model number is BHL 125 L200.
What is the maximum allowed temperature for the lamp?
The maximum operating temperature is 130 °C.
What is the input voltage and frequency for the BHL 125 L200?
The ballast operates at 220 V and 50 Hz.
What are the physical dimensions of the ballast?
The dimensions are 117.0 mm × 102.0 mm × 57.1 mm.
