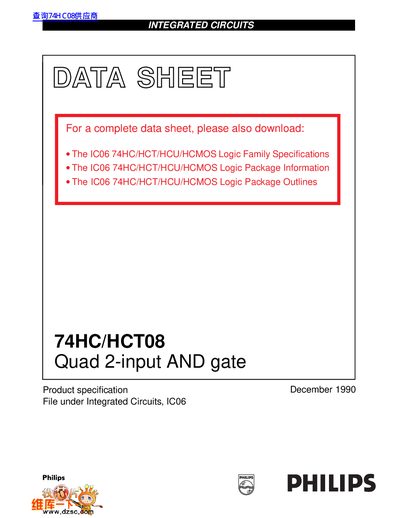

Philips 74HC/HCT08 Quad 2-input AND Gate Datasheet
The Philips 74HC/HCT08 is a high-speed Si-gate CMOS device that is pin compatible with low power Schottky TTL (LSTTL). It provides the 2-input AND function and is specified in compliance with JEDEC standard no. 7A.
The document details the features, quick reference data, pin descriptions, logic symbols, functional diagrams, and AC/DC characteristics for both 74HC and 74HCT variants. It also includes information on ordering and package outlines.
Philips HCT08 specifications
| Output capability | standard |
|---|---|
| Logic category | SSI |
| Propagation delay (typical) | 6 ns |
| Input capacitance | 3.5 pF |
| Power dissipation capacitance per gate | 10 pF (HC), 20 pF (HCT) |
All Philips HCT08 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the logic function of the 74HC/HCT08?
The 74HC/HCT08 provides the 2-input AND function.
What is the typical propagation delay?
The typical propagation delay is 6 ns.
What is the logic function of the 74HC/HCT08?
The device provides the 2-input AND function.
From: Philips Semiconductors 74HC/HCT08 Quad 2-input AND gate Datasheet
What logic function does the 74HC/HCT08 perform?
The device provides the 2-input AND function.
From: Philips Semiconductors 74HC/HCT08 Quad 2-input AND gate Datasheet
