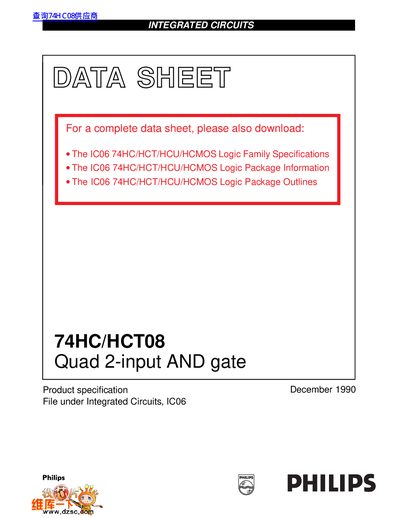

Philips Semiconductors 74HC/HCT08 Quad 2-input AND gate Datasheet

The 74HC/HCT08 is a high-speed Si-gate CMOS device that is pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT08 provide the 2-input AND function.

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 81 KB
Published: 02 July, 2012
Updated: 30 September, 2023
Models: HCT08, 74HC
MD5 checksum: CC96FA3C0AD5EA3010CFCDB1F900C7CE
PDF: Philips Semiconductors 74HC/HCT08 Quad 2-input AND gate Datasheet PDF

About this manual

This document is a product specification datasheet for the 74HC/HCT08, a high-speed Si-gate CMOS integrated circuit. The device provides the 2-input AND function and is pin compatible with low power Schottky TTL (LSTTL). It complies with JEDEC standard no. 7A.

What's inside

Features
General Description
Quick Reference Data
Ordering Information
Pin Description
Function Table
DC Characteristics for 74HC
DC Characteristics for 74HCT

Specifications

Logic category	SSI
Output capability	standard

Frequently asked questions

What is the logic function of the 74HC/HCT08?

The device provides the 2-input AND function.

What logic function does the 74HC/HCT08 perform?

The device provides the 2-input AND function.

What is the typical propagation delay for the 74HC version at 5V?

The typical propagation delay is 17 ns.

What is the input unit load coefficient for the 74HCT type?

The input unit load coefficient is 0.6.
