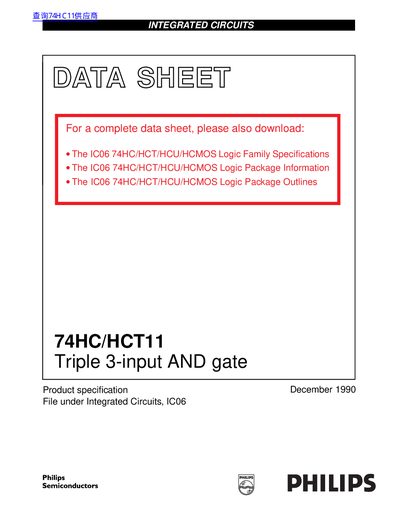

Philips 74HC/HCT11 Triple 3-input AND gate Datasheet
Datasheet 5 pages · 35 KB · EN
The document is a product specification sheet for the Philips 74HC/HCT11, which are high-speed Si-gate CMOS devices. These chips are designed to provide a 3-input AND function and are pin compatible with low power Schottky TTL (LSTTL). The datasheet covers general features, ordering information, and quick reference data regarding propagation delays and power dissipation.
Read onlinePhilips HCT11 specifications
| Propagation delay (typical) | 10 ns |
|---|---|
| Input capacitance | 3.5 pF |
| Power dissipation capacitance per gate | 18 pF |
| Output capability | standard |
| Icc category | SSI |
Source: Philips 74HC/HCT11 Triple 3-input AND Gate Datasheet
All Philips HCT11 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What logic function does the 74HC/HCT11 perform?
The device provides the 3-input AND function.
What is the output capability of this device?
The output capability is standard.
What is the function of the 74HC/HCT11?
The 74HC/HCT11 provides the 3-input AND function.
What is the typical propagation delay for the 74HC/HCT11?
The typical propagation delay is 10 ns to 11 ns.
