Key facts
- Brand
- Philips
- Model
- HCT10
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-02
Start here

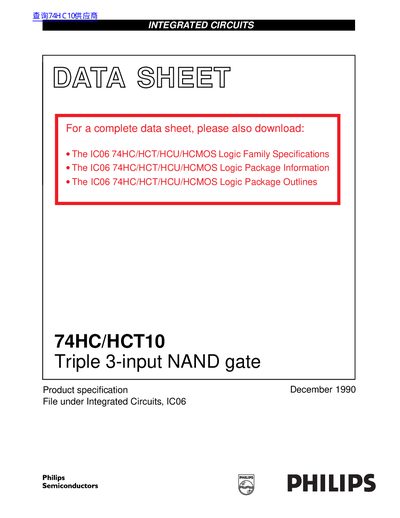

Philips 74HC/HCT10 Triple 3-input NAND Gate Datasheet
Datasheet 5 pages · 36 KB · EN
The Philips 74HC/HCT10 is a high-speed Si-gate CMOS device that is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A and provides the 3-input NAND function. The document includes quick reference data, ordering information, and detailed pin configurations.
Read onlinePhilips HCT10 specifications
| Input capacitance | 3.5 pF |
|---|---|
| Power dissipation capacitance per gate (HC) | 12 pF |
| Operating temperature range (HC) | -40 to + 85 °C |
| Operating temperature range (HCT) | -40 to +125 °C |
Source: Philips 74HC/HCT10 Triple 3-input NAND Gate Datasheet
All Philips HCT10 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the logic function of the 74HC/HCT10?
The device provides the 3-input NAND function.
What is the maximum ambient temperature for operation?
The unit operates up to +125°C.
What is the logic function of the 74HC/HCT10?
The device provides the 3-input NAND function.
Is the 74HC/HCT10 compatible with TTL?
Yes, it is pin compatible with low power Schottky TTL (LSTTL).
