The 1PS301 is a high-speed double diode produced by Philips. It features a small size, fast switching speed, and the ability to withstand 80V reverse voltage. This product is mainly used in high frequency circuits.

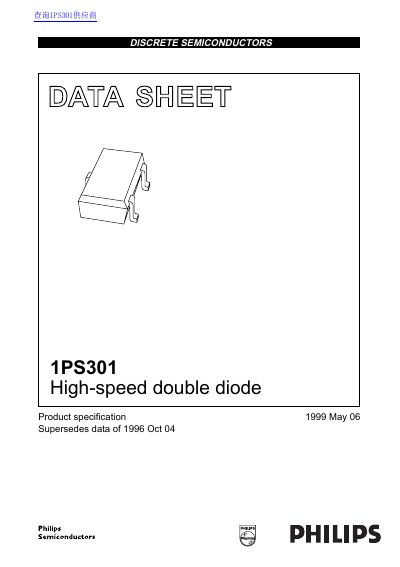

The document describes the Philips 1PS301, a discrete semiconductor component consisting of two PIN high-speed switching diodes with common cathodes. The device is fabricated in planar technology and encapsulated in a very small rectangular plastic SMD SC70-3 package (SOT323). It is designed for applications requiring high-speed switching in surface-mounted circuits.
| Maximum repetitive peak reverse voltage | 85 V |
|---|---|
| Repetitive peak forward current (per diode) | 500 mA |
| Maximum reverse recovery time | 4 ns |
The maximum repetitive peak forward current for a single diode is 500 mA.
The maximum total power dissipation is 300 mW at Tamb = 25 °C.
