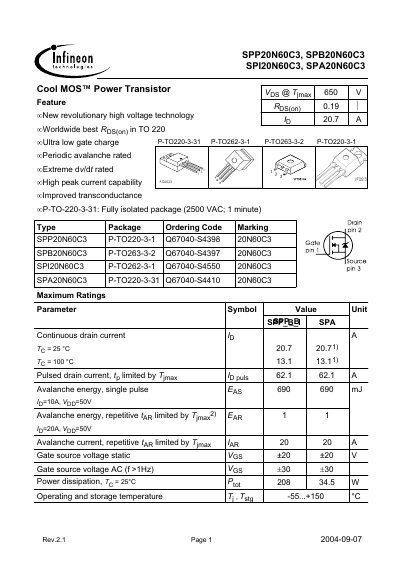

INFINEON SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3Manual Page 1 SPP20N60
The SPP20N60C3 is a high‑voltage power MOSFET offered in several TO‑220 and TO‑263 packages. It features a low on‑resistance of 0.19 Ω, high continuous drain current of 20.7 A, and a maximum drain‑source voltage of 480 V.
The datasheet provides detailed maximum ratings, thermal parameters, switching characteristics, and package dimensions, along with safety and handling notes for designers of power‑electronics applications. This manual is written in Chinese.
Infineon SPI20N60C3 specifications
| Drain‑Source Voltage (VDS) Max | 480 V |
|---|---|
| On‑Resistance (RDS(on)) Typical | 0.19 Ω |
| Power Dissipation (Ptot) @ 25 °C | 34.5 W |
Source: INFINEON SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3Manual Page 1 SPP20N60
All Infineon SPI20N60C3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- INFINEON SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3Manual Page 1 SPP20N60 15 p
- Infineon SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3 Power Transistor Datasheet 14 p
- infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1) 14 p
- Infineon SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Datasheet 14 p
Questions answered in these manuals
What is the maximum drain‑source voltage for the SPP20N60C3?
The device can withstand up to 480 V between drain and source.
From: INFINEON SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3Manual Page 1 SPP20N60
What is the typical on‑resistance of the transistor?
The typical RDS(on) is 0.19 Ω.
From: INFINEON SPP20N60C3 SPB20N60C3 SPI20N60C3 SPA20N60C3Manual Page 1 SPP20N60
What is the maximum continuous drain current?
The maximum continuous drain current is 20.7 A at 25 °C.
From: infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1)
What is the maximum power dissipation?
The maximum power dissipation is 208 W at an ambient temperature of 25 °C.
From: infineon SPP20N60C3 SPB20N60C3 Final data SPI20N60C3 SPA20N60C3 Cool MOS Power Transistor Manual(1)
