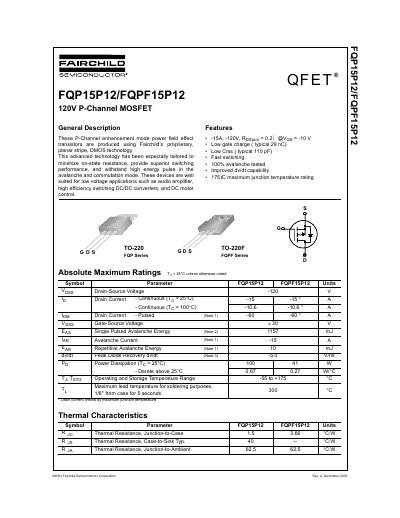

Fairchild Semiconductor FQP15P12/FQPF15P12 120V P-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FQP15P12 and FQPF15P12, which are 120V P-Channel enhancement mode power field effect transistors. These devices utilize Fairchild's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are well-suited for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control.
Read onlineFairchild FQP15P12 specifications
| Drain-Source Voltage | -120 V |
|---|---|
| On-Resistance | 0.22 Ohms |
| Maximum Junction Temperature | 175°C |
| Operating and Storage Temperature Range | -55 to +175 °C |
| Package Type | TO-220 / TO-220F |
Source: Fairchild Semiconductor FQP15P12/FQPF15P12 120V P-Channel MOSFET Datasheet
All Fairchild FQP15P12 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these MOSFETs?
These devices are well suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control.
From: Fairchild Semiconductor FQP15P12/FQPF15P12 120V P-Channel MOSFET Datasheet
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild Semiconductor FQP15P12/FQPF15P12 120V P-Channel MOSFET Datasheet
What is the maximum gate‑source voltage rating?
The maximum gate‑source voltage is +30 V.
What is the typical on‑resistance of the MOSFET?
Typical on‑resistance is about 0.17 Ω.
