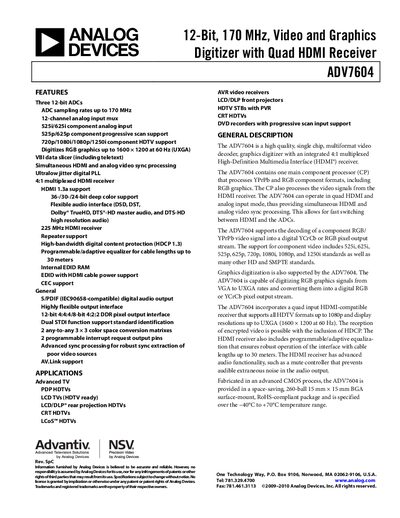

This document describes a 12-bit, 170 MHz video and graphics digitizer with quad HDMI receiver. It has various features including high-speed ADC sampling, multi-channel analog input mux, support for component and HDTV inputs at different resolutions, digitization of RGB graphics, and multiple audio interfaces and functions.
The ADV7604 is a single‑chip, multiformat video decoder and graphics digitizer that integrates a 4:1 multiplexed HDMI receiver. It supports component video standards (525i/625i/525p/625p/720p/1080i/1080p/1250i) and HDMI formats up to 1080p, providing simultaneous HDMI and analog video processing and high‑bandwidth digital content protection (HDCP 1.3).\n\nThe device is offered in a 260‑ball 15 mm × 15 mm BGA package, RoHS‑compliant, with an operating temperature range of –40 °C to +70 °C. Ordering guides list part numbers ADV7604BBCZ-5, ADV7604BBCZ-5P and evaluation boards, along with package dimensions and compliance notes.
| ADC resolution | 12‑bit |
|---|---|
| ADC sampling rate | up to 170 MHz |
| HDMI receiver bandwidth | 225 MHz |
| Temperature range | –40 °C to +70 °C |
| Package | 260‑ball 15 mm × 15 mm BGA |
The device operates from –40 °C to +70 °C.
The HDMI receiver operates at 225 MHz.
