Start here

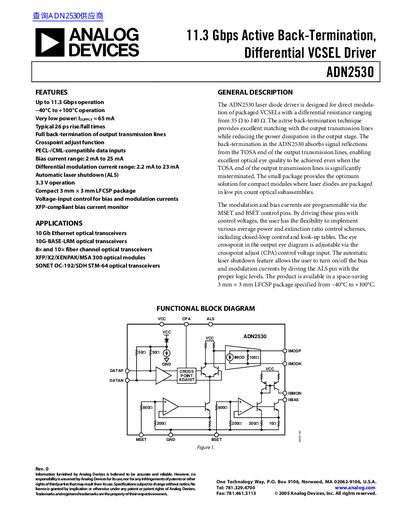

Analog Devices ADN2530 Differential VCSEL Driver Datasheet
The Analog Devices ADN2530 is a laser diode driver designed for direct modulation of packaged VCSELs with a differential resistance ranging from 35 Ω to 140 Ω. It features an up to 11.3 Gbps operation speed and utilizes active back-termination to absorb signal reflections, enabling excellent optical eye quality even when the TOSA end is significantly mismatched.
The device allows for programmable modulation and bias currents via MSET and BSET control pins, supporting closed-loop control schemes. It includes an automatic laser shutdown (ALS) feature and operates from -40°C to +100°C in a compact 3 mm x 3 mm LFCSP package.
Analog Devices ADN2530 specifications
| Data Rate | 11.3 Gbps |
|---|---|
| Operating Temperature | -40°C to +100°C |
| Package Type | 3 mm x 3 mm LFCSP |
Source: Analog Devices ADN2530 Differential VCSEL Driver Datasheet
All Analog Devices ADN2530 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADN2530?
The device supports up to 11.3 Gbps operation.
From: Analog Devices ADN2530 Differential VCSEL Driver Datasheet
Does the ADN2530 support automatic laser shutdown?
Yes, it includes an Automatic Laser Shutdown (ALS) feature.
From: Analog Devices ADN2530 Differential VCSEL Driver Datasheet
What temperature range can the ADN2530 operate in?
The device is rated for operation from –40 °C to +100 °C.
How much supply current does the device draw?
Typical supply current is between 65 mA and 76 mA at 3.3 V.
