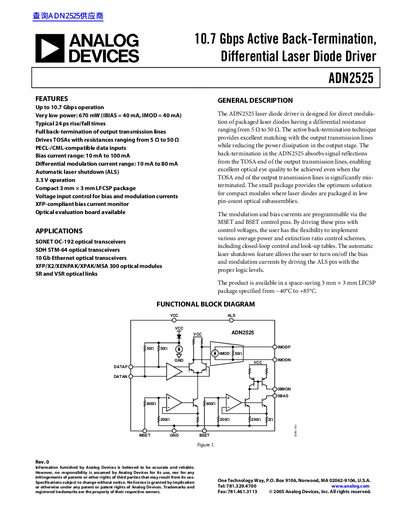

Analog Devices ADN2525 Datasheet
Datasheet 16 pages · 412 KB · EN
The ADN2525 is a differential laser diode driver designed for direct modulation of packaged laser diodes with differential resistances ranging from 5 to 50 Ohms. It utilizes an active back-termination technique to absorb signal reflections from the TOSA end of output transmission lines, ensuring excellent optical eye quality even with significant mis-termination. The device supports data rates up to 10.7 Gbps with typical rise and fall times of 24 ps.
Read onlineAnalog Devices ADN2525 specifications
| Data Rate | 10.7 Gbps |
|---|---|
| Bias Current Range | 10 mA to 100 mA |
| Modulation Current Range | 10 mA to 80 mA |
| Package Type | 3 mm x 3 mm LFCSP |
Source: Analog Devices ADN2525 Datasheet
All Analog Devices ADN2525 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADN2525?
The maximum input data rate is 10.7 Gbps.
What is the typical rise and fall time?
The typical rise and fall times are both 24 ps.
What is the bias current range of the ADN2525?
The bias current can be set between 10 mA and 100 mA.
What temperature range can the ADN2525 operate in?
It operates from –40 °C up to +85 °C.
