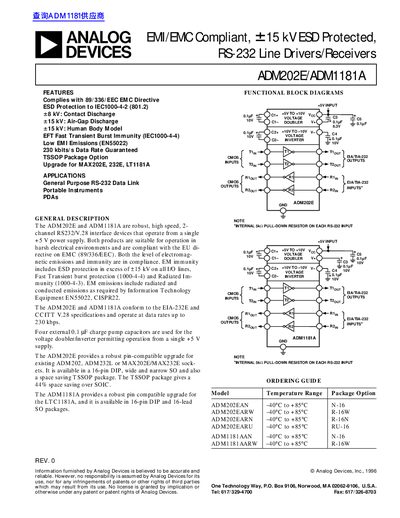

Analog Devices ADM202E/ADM1181A RS-232 Line Drivers Datasheet
The ADM202E and ADM1181A are robust, high-speed, two-channel RS-232/V.28 interface devices designed to operate from a single +5 V power supply. They feature ESD protection exceeding 15 kV on all I/O lines and comply with EU EMC directives.
Read onlineAnalog Devices ADM1181A specifications
| Operating Voltage Range | 4.5 V to 5.5 V |
|---|---|
| Maximum Data Rate | 230 kbps |
| ESD Protection (Human Body Model) | +15 kV |
| Power Supply Current (No Load) | 2.0 mA Typ |
Source: Analog Devices ADM202E/ADM1181A RS-232 Line Drivers Datasheet
All Analog Devices ADM1181A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices ADM202E/ADM1181A RS-232 Line Drivers Datasheet 12 p
- Analog Devices ADM202E/ADM1181A RS-232 Line Drivers/Receivers Datasheet 16 p
- Analog Devices ADM202E/ADM1181A RS-232 Line Driver/Receiver Datasheet 16 p
- Analog Devices ADM202E/ADM1181A Datasheet 12 p
- Analog Devices ADM202E / ADM1181A RS-232 Line Driver/Receiver Datasheet 16 p
- Analog Devices ADM202E/ADM1181A Handbook 16 p
Questions answered in these manuals
What is the operating voltage range?
The devices operate from a single +5 V power supply with a recommended range of 4.5 V to 5.5 V.
From: Analog Devices ADM202E/ADM1181A RS-232 Line Drivers Datasheet
What is the maximum data rate?
The ADM202E and ADM1181A support data rates up to 230 kbps.
From: Analog Devices ADM202E/ADM1181A RS-232 Line Drivers Datasheet
What ESD protection rating does the ADM202E/ADM1181A provide?
The devices are protected against electrostatic discharge of up to ±15 kV on all I/O pins (human‑body model).
From: Analog Devices ADM202E/ADM1181A RS-232 Line Drivers/Receivers Datasheet
What is the maximum data rate supported by the ADM202E/ADM1181A?
Both devices support data rates up to 230 kbps.
From: Analog Devices ADM202E/ADM1181A RS-232 Line Drivers/Receivers Datasheet
What is the maximum data rate of the ADM202E/ADM1181A?
The devices support data rates up to 230 kbps.
From: Analog Devices ADM202E/ADM1181A RS-232 Line Driver/Receiver Datasheet
Which package options are available for the ADM202E?
The ADM202E is offered in 16‑lead PDIP, wide SOIC, narrow SOIC, and TSSOP packages.
From: Analog Devices ADM202E/ADM1181A RS-232 Line Driver/Receiver Datasheet
