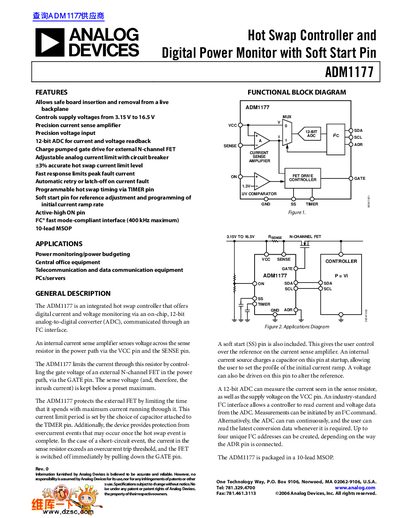

Analog Devices ADM1177 Hot Swap Controller Datasheet
The Analog Devices ADM1177 is an integrated hot swap controller that offers digital current and voltage monitoring via an on-chip 12-bit analog-to-digital converter (ADC). It communicates through a PC interface to allow controllers to read current and voltage data. The device limits inrush current by controlling the gate voltage of an external N-channel FET.
Read onlineAnalog Devices ADM1177 specifications
| Operating Voltage Range | 3.15 V to 16.5 V |
|---|---|
| Supply Current | 25 mA (typical) |
| ADC Resolution | 12-bit |
| Package Type | 10-lead MSOP |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices ADM1177 Hot Swap Controller Datasheet
All Analog Devices ADM1177 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the Soft Start (SS) pin?
The SS pin gives control over the reference on the current sense amplifier and allows setting the profile of the initial current ramp.
What are the applications for this device?
It is used in power monitoring, central office equipment, telecommunication/data communication equipment, and PCs/servers.
What is the operating voltage range of the ADM1177?
The device operates from 3.15 V up to 16.5 V on the VCC pin.
How many I²C addresses can be set on the ADM1177?
Up to four unique I²C addresses can be created using the ADR pin.
