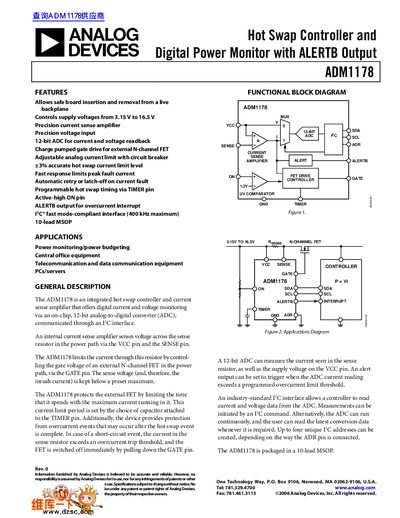

Analog Devices ADM1178 Hot Swap Controller and Digital Power Monitor Datasheet
The ADM1178 is an integrated hot swap controller and current sense amplifier designed to allow safe board insertion and removal from a live backplane. It controls supply voltages ranging from 3.15 V to 16.5 V and features a precision current sense amplifier and voltage input. The device includes a 12-bit ADC for current and voltage readback communicated through an I2C interface.
Read onlineAnalog Devices ADM1178 specifications
| Operating Voltage Range | 3.15 V to 16.5 V |
|---|---|
| Supply Current | 1.7 mA (Typ) |
| ADC Resolution | 12-bit |
| Interface | I2C |
| Package Type | 10-lead MSOP |
| Operating Temperature Range | -40°C to +85°C |
| SCL Clock Frequency | 400 kHz |
Source: Analog Devices ADM1178 Hot Swap Controller and Digital Power Monitor Datasheet
All Analog Devices ADM1178 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the ADM1178?
The device controls supply voltages from 3.15 V to 16.5 V.
From: Analog Devices ADM1178 Hot Swap Controller and Digital Power Monitor Datasheet
What type of interface does the ADM1178 use?
It uses a PC fast mode-compliant I2C interface with a maximum frequency of 400 kHz.
From: Analog Devices ADM1178 Hot Swap Controller and Digital Power Monitor Datasheet
What is the maximum I²C bus speed supported by the ADM1178?
The device supports I²C fast‑mode operation up to 400 kHz.
What package does the ADM1178 come in?
The ADM1178 is supplied in a 10‑lead MSOP package.
