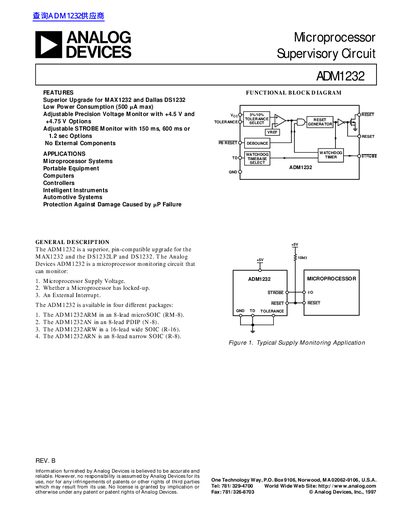

Analog Devices ADM1232 Microprocessor Supervisory Circuit Datasheet
The ADM1232 is a microprocessor monitoring circuit designed to monitor supply voltage, detect microprocessor lock-ups, and handle external interrupts. It serves as a superior, pin-compatible upgrade for the MAX1232 and Dallas DS1232LP/DS1232 devices. The circuit is available in four different packages: 8-lead microSOIC, 8-lead PDIP, 16-lead wide SOIC, and 8-lead narrow SOIC.
Read onlineAnalog Devices ADM1232 specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Power Supply Voltage | 4.5 V to 5.5 V |
| Output Current (RESET) | 8 mA to 10 mA |
| VCC Trip Point (5% Tolerance) | 4.5 V to 4.74 V |
| PB RESET Time | 20 ms |
| RESET Active Time | 250 ms to 1000 ms |
Source: Analog Devices ADM1232 Microprocessor Supervisory Circuit Datasheet
All Analog Devices ADM1232 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ADM1232 compatible with?
The ADM1232 is a pin-compatible upgrade for the MAX1232 and the DS1232LP and DS1232.
From: Analog Devices ADM1232 Microprocessor Supervisory Circuit Datasheet
Is the ADM1232 available in different packages?
Yes, it is available in four different packages: 8-lead microSOIC, 8-lead PDIP, 16-lead wide SOIC, and 8-lead narrow SOIC.
From: Analog Devices ADM1232 Microprocessor Supervisory Circuit Datasheet
What supply voltage options does the ADM1232 support?
The device can operate at 4.5 V, 5.0 V, or 5.5 V supply voltages.
How long must the PB RESET be held low to guarantee a reset?
PB RESET must be held low for a minimum of 20 ms to guarantee a reset.
How is the voltage‑tolerance level selected?
Connect the TOLERANCE pin to GND for a 5 % tolerance (trip at ~4.75 V) or to VCC for a 10 % tolerance (trip at ~4.5 V).
