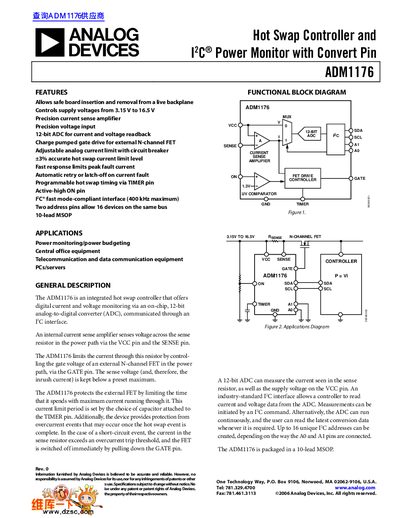

Analog Devices ADM1176 Hot Swap Controller Datasheet
The ADM1176 is an integrated hot swap controller designed to allow safe board insertion and removal from a live backplane. It controls supply voltages ranging from 3.15 V to 16.5 V and includes a precision current sense amplifier and a 12-bit ADC for current and voltage readback via a PC-compatible interface.
The device protects external N-channel FETs by limiting inrush current and managing fault conditions. It features an adjustable analog current limit, automatic retry or latch-off on current faults, and programmable timing via the TIMER pin. The ADM1176 is available in a 10-lead MSOP package.
Analog Devices ADM1176 specifications
| Operating Voltage Range | 3.15 V to 16.5 V |
|---|---|
| Supply Current | 1.7 mA typical |
| ADC Resolution | 12-bit |
| Package Type | 10-lead MSOP |
| Operating Temperature Range | -40°C to +85°C |
| SCL Clock Frequency | 400 kHz maximum |
Source: Analog Devices ADM1176 Hot Swap Controller Datasheet
All Analog Devices ADM1176 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the ADM1176?
The device supports supply voltages from 3.15 V to 16.5 V.
How does the ADM1176 communicate data?
It communicates current and voltage data via a PC-compatible interface (400 kHz maximum).
What supply voltage range does the ADM1176 support?
The device operates from 3.15 V up to 16.5 V on the VCC pin.
From: Analog Devices ADM1176 Hot Swap Controller and I2C Power Monitor Data Sheet
How many I2C addresses can be configured on the ADM1176?
Up to 16 unique I2C addresses can be set using the A0 and A1 pins.
From: Analog Devices ADM1176 Hot Swap Controller and I2C Power Monitor Data Sheet
What is the operating voltage range of the ADM1176?
The device operates from 3.15 V to 16.5 V.
How many I²C addresses can be configured on the ADM1176?
Up to 16 unique addresses can be set using the two address pins.
