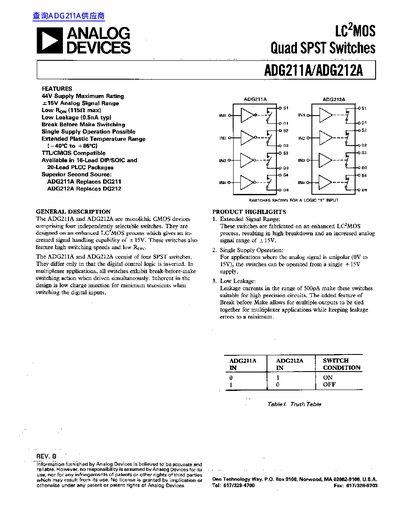

Analog Devices ADG211A/ADG212A Quad SPST Switches Datasheet
The ADG211A and ADG212A are monolithic CMOS devices comprising four independently selectable switches. They differ only in that the digital control logic is inverted, with the ADG211A having non-inverted logic and the ADG212A having inverted logic. These switches feature a high switching speed and low on-resistance (Ron).
Read onlineAnalog Devices ADG211A specifications
| Maximum Supply Voltage | 44 V |
|---|---|
| Analog Signal Range | ±15 V |
| On‑Resistance (Ron) typical | 115 Ω |
| Off‑Leakage Current (I_OFF) | 0.5 nA typ |
| Propagation Delay (t_on) | 30 ns typ |
All Analog Devices ADG211A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between ADG211A and ADG212A?
They differ only in that the digital control logic is inverted.
From: Analog Devices ADG211A/ADG212A Quad SPST Switches Datasheet
What are the available package options for these switches?
The devices are available in 16-Lead DIP/SOIC and 20-Lead PLCC packages.
From: Analog Devices ADG211A/ADG212A Quad SPST Switches Datasheet
What is the maximum supply voltage for the ADG211A/ADG212A?
The devices are rated for a maximum supply voltage of 44 V.
What analog signal range do these switches support?
They support an analog signal range of ±15 V.
