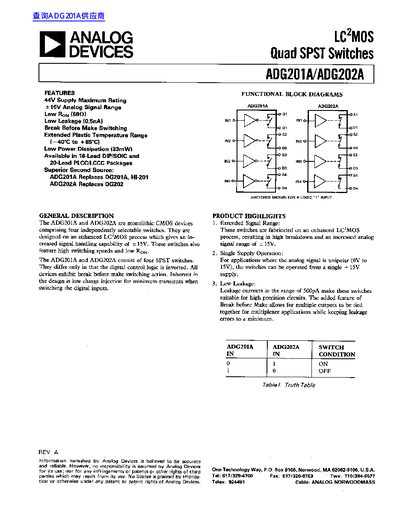

ANALOG DEVICES ADG201A/ADG202A LC2MOS quad SPST Switches handbook
The ADG201A and ADG202A are monolithic CMOS devices comprising four independently selectable switches designed on an enhanced LC MOS process. They feature a high analog signal handling capability of +15V, low on-resistance (Ron), and low leakage currents suitable for high-precision circuits.
Read onlineAnalog Devices ADG201A specifications
| Power Dissipation | 33 mW max |
|---|---|
| Operating Temperature (K Version) | -40°C to +85°C |
| Switching Time (ton) | 300 ns max |
Source: ANALOG DEVICES ADG201A/ADG202A LC2MOS quad SPST Switches handbook
All Analog Devices ADG201A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum analog signal range?
The switches are designed with an increased signal handling capability of +15V.
From: ANALOG DEVICES ADG201A/ADG202A LC2MOS quad SPST Switches handbook
Do these switches feature break before make switching?
Yes, all devices exhibit break before make switching action to minimize transients.
From: ANALOG DEVICES ADG201A/ADG202A LC2MOS quad SPST Switches handbook
What is the maximum supply voltage rating for the ADG201A?
The device is rated for a maximum supply voltage of 44 V.
What temperature range can the ADG201A operate in?
It operates from –40 °C to +85 °C.
