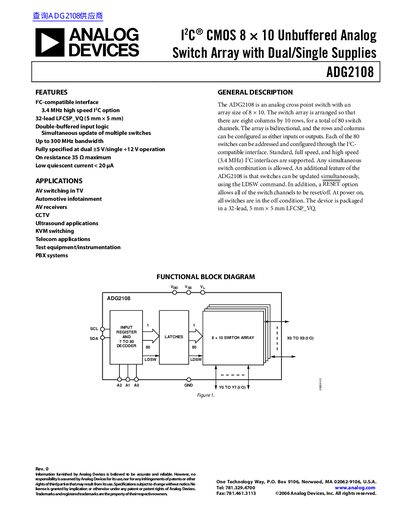

Analog Devices ADG2108 I2C CMOS Analog Switch Array Datasheet
The ADG2108 is an analog cross-point switch featuring an 8x10 array size, providing a total of 80 switch channels. The device is bidirectional, allowing rows and columns to be configured as inputs or outputs, and supports simultaneous updates of multiple switches via the I2C-compatible interface. It is available in a 32-lead LFCSP_WQ package.
Read onlineAnalog Devices ADG2108 specifications
| Array Size | 8 x 10 |
|---|---|
| Total Channels | 80 |
| Bandwidth | Up to 300 MHz |
| Quiescent Current | < 20 µA |
| Package Type | 32-lead LFCSP_WQ |
| Operating Temperature (B Version) | -40°C to +85°C |
| Operating Temperature (Y Version) | -40°C to +125°C |
Source: Analog Devices ADG2108 I2C CMOS Analog Switch Array Datasheet
All Analog Devices ADG2108 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum bandwidth of the ADG2108?
The device features up to 300 MHz bandwidth.
From: Analog Devices ADG2108 I2C CMOS Analog Switch Array Datasheet
How many switch channels does the ADG2108 contain?
The switch array has a total of 80 switch channels.
From: Analog Devices ADG2108 I2C CMOS Analog Switch Array Datasheet
What is the maximum on-resistance of the ADG2108?
The maximum on-resistance is 62 ohms.
From: Analog Devices ADG2108 8x10 Unbuffered Analog Switch Array Datasheet
What is the maximum bandwidth of the ADG2108?
The maximum bandwidth is 300 MHz.
From: Analog Devices ADG2108 8x10 Unbuffered Analog Switch Array Datasheet
What is the maximum bandwidth of the ADG2108?
The high‑speed Y‑version model reaches a 3‑dB bandwidth of 300 MHz.
What supply voltage range does the ADG2108 support?
It operates with Vop from +5 V to +12 V and Vss from –5 V to 0 V.
