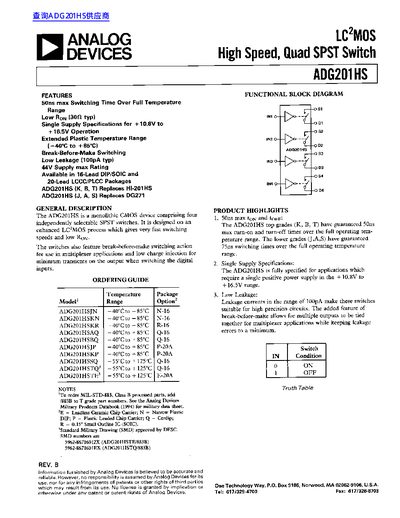

ANALOG DEVICES ADG201HS LC2MOS high speed quad SPST Switch handbook
The ADG201HS is a monolithic CMOS device comprising four independently selectable SPST switches designed on an enhanced LC?MOS process. It features very fast switching speeds with a maximum switching time of 50ns for top grades and low on-resistance (Ron) of 30 ohms typical. The device includes break-before-make switching action for multiplexer applications and low charge injection to minimize transients on the output when switching digital inputs.
Read onlineAnalog Devices ADG201HS specifications
| Max Switching Time (Top Grades) | 50ns |
|---|---|
| Typical On-Resistance (Ron) | 30 ohms |
| Typical Leakage Current | 100pA |
| Max Supply Voltage | 44V |
Source: ANALOG DEVICES ADG201HS LC2MOS high speed quad SPST Switch handbook
All Analog Devices ADG201HS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum switching time for the ADG201HS?
The top grades (K, B, T) have a guaranteed maximum switching time of 50ns over the full operating temperature range.
From: ANALOG DEVICES ADG201HS LC2MOS high speed quad SPST Switch handbook
What supply voltage range is specified for the ADG201HS?
The device is fully specified for single positive power supply operation in the +10.8V to +16.5V range.
From: ANALOG DEVICES ADG201HS LC2MOS high speed quad SPST Switch handbook
What is the fastest switching speed of the ADG201HS?
Grades K, B and T guarantee a maximum turn‑on and turn‑off time of 50 ns over the full operating temperature range.
What supply voltage does the ADG201HS require?
The device is specified for single‑supply operation between +10.8 V and +16.5 V.
