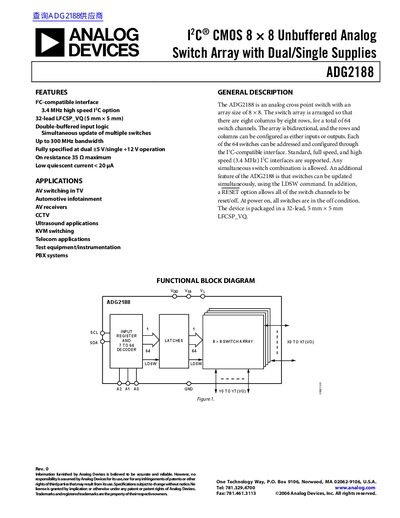

Analog Devices ADG2188 CMOS 8x8 Unbuffered Analog Switch Array Datasheet
The ADG2188 is an analog cross-point switch featuring an 8x8 array of 64 switch channels. The device is bidirectional, allowing rows and columns to be configured as either inputs or outputs. It supports standard, full speed, and high speed (3.4 MHz) I2C interfaces, enabling simultaneous updates of multiple switches via the LDSW command.
Read onlineAnalog Devices ADG2188 specifications
| Array Size | 8 x 8 |
|---|---|
| Total Switch Channels | 64 |
| Bandwidth | Up to 300 MHz |
| On Resistance (Ron) | 35 Ohm max |
| Quiescent Current | < 20 pA |
| Package Type | 32-lead LFCSP_VQ |
Source: Analog Devices ADG2188 CMOS 8x8 Unbuffered Analog Switch Array Datasheet
All Analog Devices ADG2188 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum bandwidth of the ADG2188?
The device supports up to 300 MHz bandwidth.
From: Analog Devices ADG2188 CMOS 8x8 Unbuffered Analog Switch Array Datasheet
How many switch channels does the ADG2188 contain?
It contains a total of 64 switch channels arranged in an 8x8 array.
From: Analog Devices ADG2188 CMOS 8x8 Unbuffered Analog Switch Array Datasheet
Which supply voltages can the ADG2188 operate from?
It can be powered from dual +5 V or a single +12 V supply.
What supply voltages can the ADG2188 operate from?
It can operate with dual +5 V supplies or a single +12 V supply.
What I²C speeds are supported?
Standard, full‑speed and high‑speed (3.4 MHz) I²C interfaces are supported.
