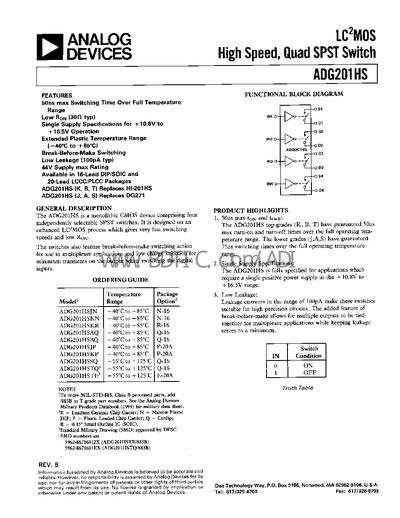

The ADG201HS is a monolithic CMOS quad SPST switch offering fast 50 ns turn‑on/off times, low on‑resistance and low leakage. It operates from a single positive supply of +10.8 V to +16.5 V and is available in DIP, SOIC, LCCC and PLCC packages.
The document provides detailed electrical specifications, absolute maximum ratings, typical performance curves, test circuit descriptions and a single‑supply disk‑drive application example.
| Maximum switching time | 50 ns (typ) over full temperature range |
|---|---|
| On‑resistance (Ron) | 30 Ω typ |
| Supply voltage range | +10.8 V to +16.5 V (single supply) |
| Leakage current | 100 pA typ |
| Maximum supply rating | 44 V |
Grades K, B and T guarantee a maximum turn‑on and turn‑off time of 50 ns over the full operating temperature range.
The device is specified for single‑supply operation between +10.8 V and +16.5 V.
The typical on‑resistance is 30 Ω.
Leakage currents are typically 100 pA.
