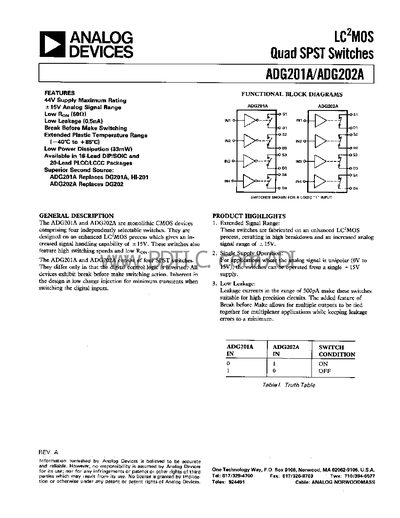

The ADG201A and ADG202A are monolithic CMOS quad SPST switches offering a +15 V analog signal range and 44 V maximum supply rating. They feature low on‑resistance (≈60 Ω), very low leakage (≈2 nA), break‑before‑make operation and an extended temperature range of –40 °C to +85 °C.
The datasheet provides detailed specifications, pin configurations for DIP, SOIC and PLCC packages, ordering guide options, typical performance curves, test circuits, and mechanical dimensions for each package type.
| Maximum Supply Voltage | 44 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
The device is rated for a maximum supply voltage of 44 V.
It operates from –40 °C to +85 °C.
