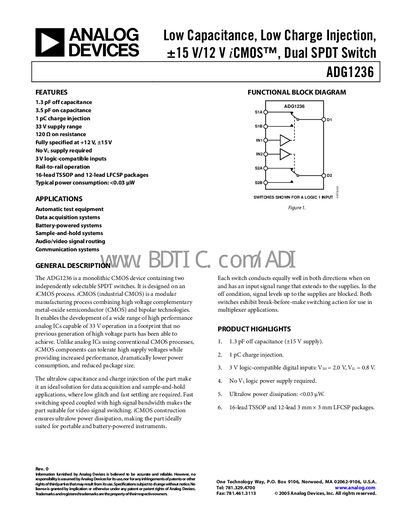

The ADG1236 is a dual SPDT switch with features such as low capacitance, low charge injection, ±15 V/12 V iCMOS™, etc.
The ADG1236 is a monolithic iCMOS dual SPDT switch featuring 1.3 pF off‑capacitance, 3.5 pF on‑capacitance, 1 pC charge injection and a 33 V supply range. It operates with no separate logic supply, uses 3 V logic‑compatible inputs, and consumes less than 0.03 µW of power. The device is available in 16‑lead TSSOP and 12‑lead LFCSP packages.
Typical applications include automatic test equipment, data‑acquisition and sample‑and‑hold systems, battery‑powered instruments, audio/video signal routing and communication systems where low glitch and fast settling are required.
| Off capacitance | 1.3 pF |
|---|---|
| On capacitance | 3.5 pF |
| Charge injection | 1 pC |
| Supply voltage range | ±15 V (33 V total) |
| On resistance (typical) | 120 Ω |
| Power consumption (typical) | <0.03 µW |
| Digital input high voltage | 2.0 V |
| Digital input low voltage | 0.8 V |
| Transition time (Aon) | 125 ns typical |
| Break‑before‑make delay | 25 ns typical |
| 3‑dB bandwidth | 1 GHz (typical) |
The device operates from +15 V to –15 V, giving a total 33 V supply range.
Typical on‑resistance is 120 Ω and off‑capacitance is 1.3 pF.
The inputs are 3 V logic‑compatible, with a high level of 2.0 V and a low level of 0.8 V.
Typical power consumption is less than 0.03 µW.
