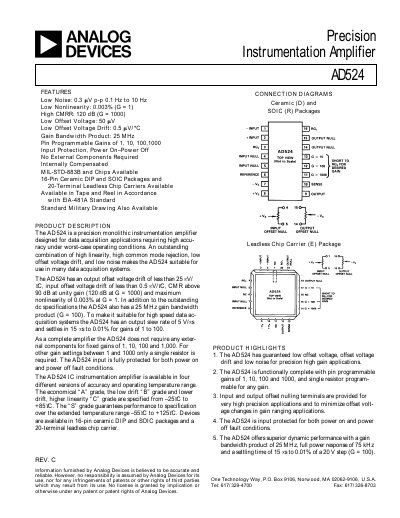

Analog Devices AD524 Precision Instrumentation Amplifier Handbook
The AD524 precision instrumentation amplifier is designed for high‑accuracy data‑acquisition systems. It offers low noise (0.3 mV p‑p from 0.1 Hz to 10 Hz), low offset voltage (50 mV), and a gain‑bandwidth product of 25 MHz.
The device is available in multiple temperature‑grade packages (A, B, C, S) and in 16‑pin DIP, SOIC, and leadless chip carrier formats. Fixed gains of 1, 10, 100 and 1000 are pin‑programmable without external components, and any gain between 1 and 1000 can be set with a single external resistor.
Analog Devices AD524 specifications
| Low Noise | 0.3 mV p‑p (0.1 Hz‑10 Hz) |
|---|---|
| Nonlinearity | 0.003 % (G = 1) |
| CMRR | 120 dB (G = 1000) |
| Offset Voltage | 50 mV |
| Gain Bandwidth Product | 25 MHz |
| Supply Voltage Range | ±18 V |
| Temperature Range (S‑grade) | –55 °C to +125 °C |
Source: Analog Devices AD524 Precision Instrumentation Amplifier Handbook
All Analog Devices AD524 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What gain options are internally programmable?
The AD524 provides pin‑programmable gains of 1, 10, 100 and 1000.
From: Analog Devices AD524 Precision Instrumentation Amplifier Handbook
Does the AD524 require external components for the fixed gains?
No external components are required for the fixed gains of 1, 10, 100 and 1000.
From: Analog Devices AD524 Precision Instrumentation Amplifier Handbook
What gain options does the AD524 support?
The AD524 provides pin‑programmable gains of 1, 10, 100, and 1000, and any gain between 1 and 1000 can be set with a single external resistor.
What is the input offset voltage of the AD524?
The input offset voltage is specified as 250 nV minimum and 100 nV typical.
