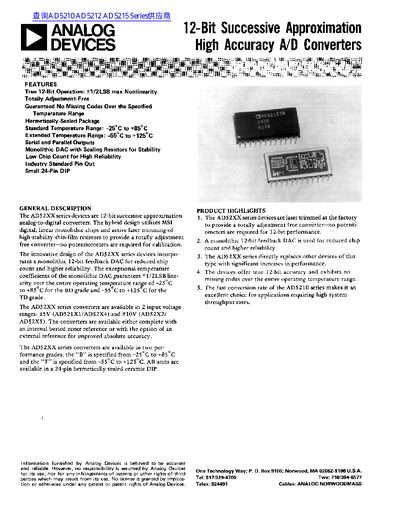

Analog Devices AD5210 Series 12-Bit A/D Converter Datasheet
The document describes the AD52XX series devices as 12-bit successive approximation A/D converters featuring a hybrid design with monolithic chips and laser-trimmed resistors. Key features include true 12-bit operation, guaranteed no missing codes over specified temperature ranges, and availability in hermetically-sealed packages.
Read onlineAnalog Devices AD5210 specifications
| Resolution | 12 Bits |
|---|---|
| Linearity Error | +1/2LSB max Nonlinearity |
| Operating Temperature Range (B Grade) | -25°C to +85°C |
| Operating Temperature Range (T Grade) | -55°C to +125°C |
Source: Analog Devices AD5210 Series 12-Bit A/D Converter Datasheet
All Analog Devices AD5210 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum linearity error for the AD52XX series?
The devices exhibit a true 12-bit operation with a maximum nonlinearity of +1/2LSB.
From: Analog Devices AD5210 Series 12-Bit A/D Converter Datasheet
Are there missing codes in the AD52XX series over the temperature range?
No, the converters are guaranteed to have no missing codes over the specified temperature range.
From: Analog Devices AD5210 Series 12-Bit A/D Converter Datasheet
Does the AD52XX series require calibration potentiometers?
No, these devices are laser trimmed at the factory to provide a totally adjustment-free converter.
From: Analog Devices AD5210 Series 12-Bit Successive Approximation A/D Converter Datasheet
Are there missing codes in the AD52XX series over the operating temperature range?
No, the devices exhibit no missing codes over the entire operating temperature range.
From: Analog Devices AD5210 Series 12-Bit Successive Approximation A/D Converter Datasheet
What is the gain range of the AD521?
The gain can be preset from 0.1 to more than 1000.
How many resistors are required to set the gain?
The AD521 requires only two resistors to set its gain.
