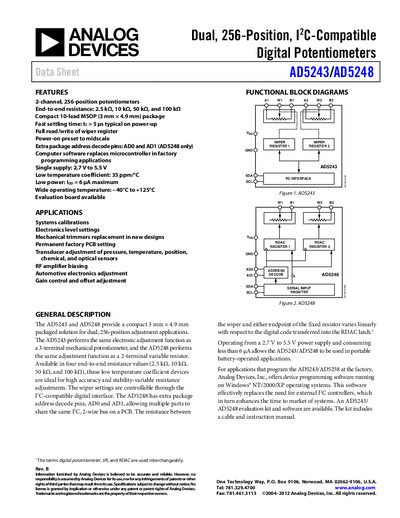

Analog Devices AD5243/AD5248 Digital Potentiometer Datasheet
The AD5243 and AD5248 provide compact 3 mm × 4.9 mm packaged dual 256‑position digital potentiometers. They operate from a single 2.7 V to 5.5 V supply, consume less than 6 pA on power‑on, and feature a low temperature coefficient of 35 ppm/°C. The devices support full read/write of the wiper register and include optional address decode pins on the AD5248 for multi‑device I²C buses.
Typical applications include system calibrations, sensor adjustments, RF amplifier biasing, automotive electronics tuning, and gain or offset control. An evaluation board and Windows‑based programming software are available to simplify factory programming and system integration.
Analog Devices AD5243 specifications
| End‑to‑end resistance options | 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Power‑on current | ≤ 6 pA |
| Resistance temperature coefficient | 35 ppm/°C |
| Wiper resistance (typical) | 160 Ω – 200 Ω |
| Differential nonlinearity (DNL) | ±1 LSB max |
| Integral nonlinearity (INL) | ±2 LSB (2.5 kΩ version) |
| Bandwidth (‑3 dB) | 4.8 MHz (typical) |
| Total harmonic distortion | 0.1 % at 1 kHz |
| Shutdown supply current | ≈ 1 pA |
Source: Analog Devices AD5243/AD5248 Digital Potentiometer Datasheet
All Analog Devices AD5243 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD5243/AD5248 operate from?
It operates from a single 2.7 V to 5.5 V supply.
From: Analog Devices AD5243/AD5248 Digital Potentiometer Datasheet
How much current does the device draw on power‑on?
The power‑on current is specified as 6 pA maximum.
From: Analog Devices AD5243/AD5248 Digital Potentiometer Datasheet
What supply voltage range does the AD5243/AD5248 support?
The devices operate from a single 2.7 V to 5.5 V supply.
How many positions are available per channel?
Each channel provides 256 discrete positions.
