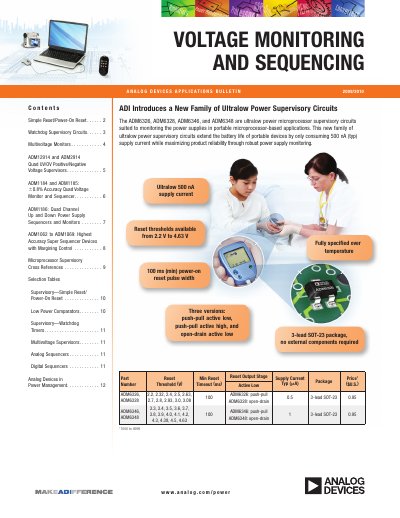

Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Ultralow Power Supervisory Circuits Datasheet
Analog Devices introduces a new family of ultralow power supervisory circuits suited to monitoring power supplies in portable microprocessor-based applications. These devices extend battery life by consuming only 500 nA (typ) supply current while maximizing reliability through robust power supply monitoring.
The document details the specifications for the ADM6326, ADM6328, ADM6346, and ADM6348 models. Key features include reset thresholds available from 2.2 V to 4.63 V, a minimum 100 ms power-on reset pulse width, and availability in a 3-lead SOT-23 package requiring no external components. Three versions are offered: push-pull active low, push-pull active high, and open-drain active low.
Analog Devices ADM6348 specifications
| Supply Current | 500 nA (typ) |
|---|---|
| Reset Threshold Range | 2.2 V to 4.63 V |
| Power-On Reset Pulse Width | 100 ms (min) |
| Package Type | 3-lead SOT-23 |
Source: Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Ultralow Power Supervisory Circuits Datasheet
All Analog Devices ADM6348 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply current of the ADM6326 family?
The supply current is 500 nA typical.
From: Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Ultralow Power Supervisory Circuits Datasheet
What package is used for these supervisory circuits?
They use a 3-lead SOT-23 package.
From: Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Ultralow Power Supervisory Circuits Datasheet
What is the minimum reset timeout period?
The device guarantees a minimum reset timeout of 100 ms.
From: Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Datasheet
What reset output options are available for the ADM6326 and ADM6346?
Both devices provide an active‑low push‑pull reset output.
From: Analog Devices ADM6326/ADM6328/ADM6346/ADM6348 Datasheet
