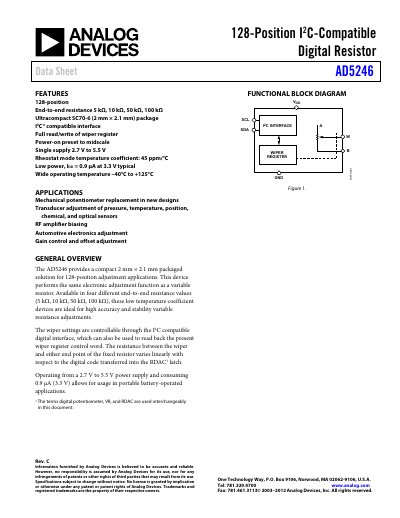

Analog Devices AD5246 Digital Resistor Data Sheet
The AD5246 provides a compact SC70‑6 packaged solution for 128‑position resistance adjustment. It offers four end‑to‑end resistance options (5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ) and operates from a single 2.7 V‑5.5 V supply. An I2C‑compatible two‑wire interface allows full read/write access to the wiper register, with a power‑on preset to midscale.
Operation is based on a 7‑bit RDAC register that selects one of 128 taps. The device includes ESD protection, level‑shifting guidance for mixed‑voltage systems, and a recommended power‑up sequence (GND, VDD, digital inputs, then VB/VW). Current through the wiper is limited to 5 mA continuous (20 mA pulse) to protect the internal switches.
Analog Devices AD5246 specifications
| End‑to‑end resistance options | 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Temperature coefficient | 45 ppm/°C |
| I2C clock frequency limit | 400 kHz |
| Power‑on preset | midscale |
All Analog Devices AD5246 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many positions does the AD5246 provide?
The AD5246 provides 128 discrete resistance positions.
What is the maximum current allowed through the wiper?
The wiper current is limited to 5 mA continuous and 20 mA pulse.
What supply voltage range does the AD5246 support?
The AD5246 operates from a single supply voltage of 2.7 V to 5.5 V.
What is the temperature coefficient of the AD5246?
The AD5246 has a low temperature coefficient of 45 ppm/°C.
