Key facts
- Brand
- Agilent
- Model
- HLMP-CW18
- Industry
- Industrial
- Documents
- 4
- Languages
- EN
- Last added
- 2012-05-08
Start here

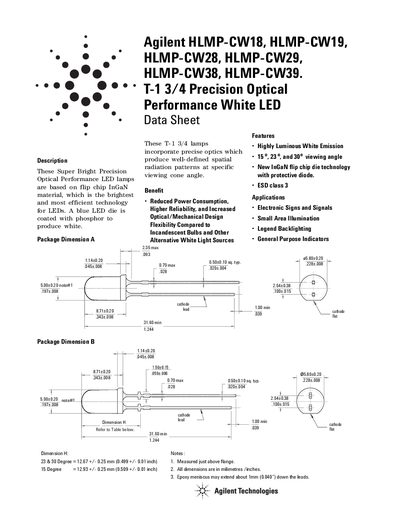

Agilent HLMP-CW18/-CW18/-CW28/-CW29/-CW38/-CW39 Data Sheet
The HLMP-CW series are super‑bright precision optical performance white LED lamps based on flip‑chip InGaN technology. They offer highly luminous white emission with selectable viewing angles of 15°, 23°, and 30°, and are suited for electronic signs, backlighting, small‑area illumination, and general‑purpose indicators.
The datasheet lists absolute maximum ratings such as a DC forward current of 30 mA, peak forward current of 100 mA, power dissipation of 120 mW, and an operating temperature range of –40 °C to +85 °C. Electrical characteristics include a typical forward voltage of 3.4 V at 20 mA, capacitance of 53 pF, reverse voltage of 0.6 V, and thermal resistance of 240 °C/W. Mechanical dimensions for package types A and B are also provided.
Agilent HLMP-CW18 specifications
| Forward Voltage (typ) | 3.4 V |
|---|---|
| Power Dissipation | 120 mW |
| Operating Temperature Range | -40 °C to +85 °C |
| DC Forward Current (max) | 30 mA |
| Capacitance | 53 pF |
| Thermal Resistance (junction to lead) | 240 °C/W |
| Luminous Intensity Tolerance | ±15% |
Source: Agilent HLMP-CW18/-CW18/-CW28/-CW29/-CW38/-CW39 Data Sheet
All Agilent HLMP-CW18 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Agilent HLMP-CW18/-CW18/-CW28/-CW29/-CW38/-CW39 Data Sheet 7 p
- Agilent HLMP-CW18 HLMP-CW19 HLMP-CW28 HLMP-CW29 HLMP-CW38 HLMP-CW39. T-1 3/4 Precision Optical Performance White LED Data Sheet(2) 6 p
- Agilent HLMP-CW18 HLMP-CW19 HLMP-CW28 HLMP-CW29 HLMP-CW38 HLMP-CW39. T-1 3/4 Precision Optical Performance White LED Data Sheet(1) 6 p
- Agilent HLMP-CW18 HLMP-CW19 HLMP-CW28 HLMP-CW29 HLMP-CW38 HLMP-CW39. T-1 3/4 Precision Optical Performance White LED Data Sheet 6 p
Questions answered in these manuals
What temperature range can the HLMP-CW LEDs operate in?
They are rated for operation from –40 °C up to +85 °C.
From: Agilent HLMP-CW18/-CW18/-CW28/-CW29/-CW38/-CW39 Data Sheet
Are there safety precautions for viewing the LED light output?
Yes, the LED light output is bright enough to cause eye injury, so proper safety equipment must be used when looking at the LED.
From: Agilent HLMP-CW18/-CW18/-CW28/-CW29/-CW38/-CW39 Data Sheet
What viewing angles are available for the HLMP-CW series?
The series offers three viewing‑angle options: 15°, 23°, and 30°.
What temperature range can the HLMP-CW LEDs operate in?
They operate from –40 °C up to +85 °C, and can be stored from –40 °C to +100 °C.
What is the forward voltage of the HLMP‑CW LEDs?
Typical forward voltage is 3.4 V and maximum is 4.0 V at a test current of 20 mA.
Which viewing angles are available for these LEDs?
Models are offered with 15°, 23°, and 30° viewing angles.
